L5963U-KBT

ProducentSTMicroelectronicsEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
L5963U-KBT_STMICROELECTRONICS
0,00 zł

Zapytaj o ten produkt

Opis / L5963U-KBT

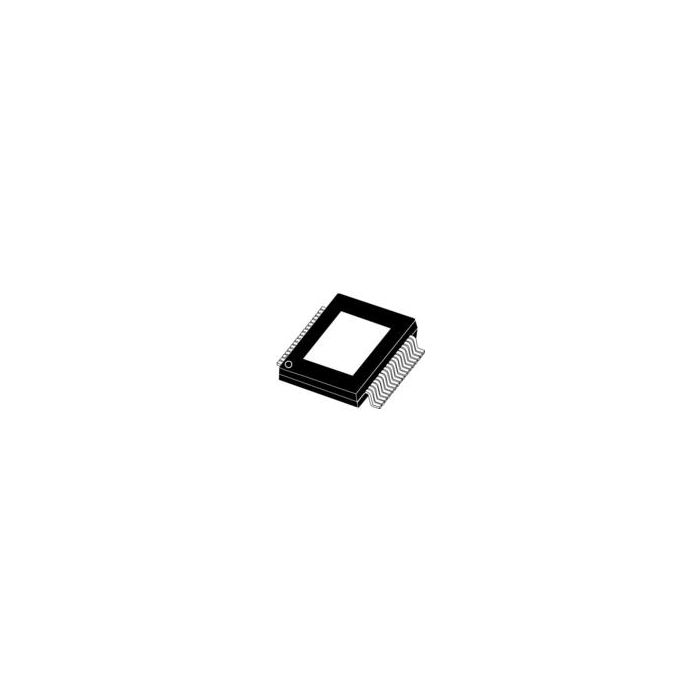

Conv DC-DC 3.5V to 26V Synchronous Step Down Dual-Out 1V 3A Automotive 36-Pin PowerSSO EP T/R

Informacje podstawowe

  • ProducentSTMicroelectronics
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • PCNs 10
  • MaskPart L5963UKBT%

Parametry

  • Efficiency (%) 93(Typ)
  • Isolation N/A
  • Line Regulation 1mV(Typ)
  • Load Regulation 1mV(Typ)
  • Maximum High Level Output Voltage (V) N/A
  • Maximum Input Voltage (V) 26
  • Maximum Low Level Output Voltage (V) N/A
  • Maximum Operating Temperature (°C) 105
  • Maximum Output Current (A) 3
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 3.5
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -55
  • Number of Outputs 2
  • Operating Supply Voltage (V) N/A
  • Output Type Adjustable
  • Output Voltage (V) 1(Min)
  • Process Technology N/A
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 250 to 2000
  • Switching Regulator Yes
  • Technology N/A
  • Type Synchronous Step Down
  • Typical Input Voltage (V) N/A
  • Typical Output Resistance (Ohm) N/A
  • Typical Quiescent Current (uA) 23
  • Typical Switch Current (A) N/A

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 3.5V to 26V Synchronous Step Down Dual-Out 1V 3A Automotive 36-Pin PowerSSO EP T/R
