L5300EPTTR
ProducentSTMicroelectronicsEURoHSYes with Exemption (2011/65/EU, 2015/863)Automotive Yes.
- SKU
- L5300EPTTR_STMICROELECTRONICS
0,00 zł
Opis / L5300EPTTR

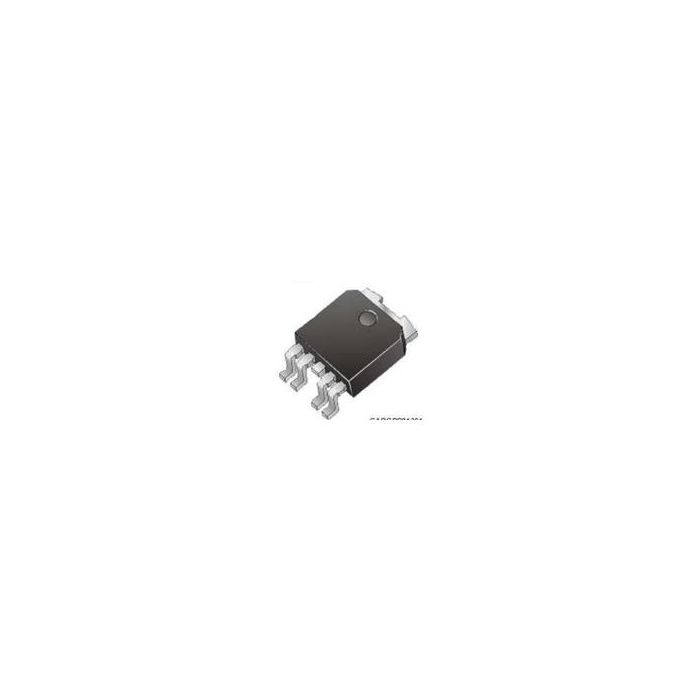

LDO Regulator Pos 5V 0.3A Automotive 5-Pin(4+Tab) PPAK T/R
Informacje podstawowe
- ProducentSTMicroelectronics
- EURoHSYes with Exemption (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 1378
- PCNs 13
- MaskPart L5300EPT%
- IntroductionDate Jul 12, 2007
Parametry
- Accuracy (%) ±2
- Junction to Ambient 45.5°C/W
- Junction to Case 5°C/W
- Line Regulation 40mV
- Load Regulation 40mV
- Maximum Dropout Voltage @ Current (V) 0.5@300mA
- Maximum Input Voltage (V) 40
- Maximum Output Current (A) 0.3
- Maximum Power Dissipation (mW) N/A
- Maximum Quiescent Current (mA) N/A
- Maximum Storage Temperature (°C) N/A
- Minimum Input Voltage (V) N/A
- Minimum Storage Temperature (°C) N/A
- Number of Outputs 1
- Output Type Fixed
- Output Voltage (V) 5
- Output Voltage Range (V) 1.8 to 10
- Polarity Positive
- Reference Voltage (V) N/A
- Special Features Current Limit|Short Circuit Protection|Thermal Shutdown Protection
- Supplier Temperature Grade N/A
- Type LDO
- Typical Dropout Voltage @ Current (V) N/A
- Typical Power Dissipation (mW) N/A
- Typical Quiescent Current (mA) 0.055
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | LDO Regulator Pos 5V 0.3A Automotive 5-Pin(4+Tab) PPAK T/R |
