L4938EPD13TR

ProducentSTMicroelectronicsEURoHSYes with Exemption (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
L4938EPD13TR_STMICROELECTRONICS
0,00 zł

Zapytaj o ten produkt

Opis / L4938EPD13TR

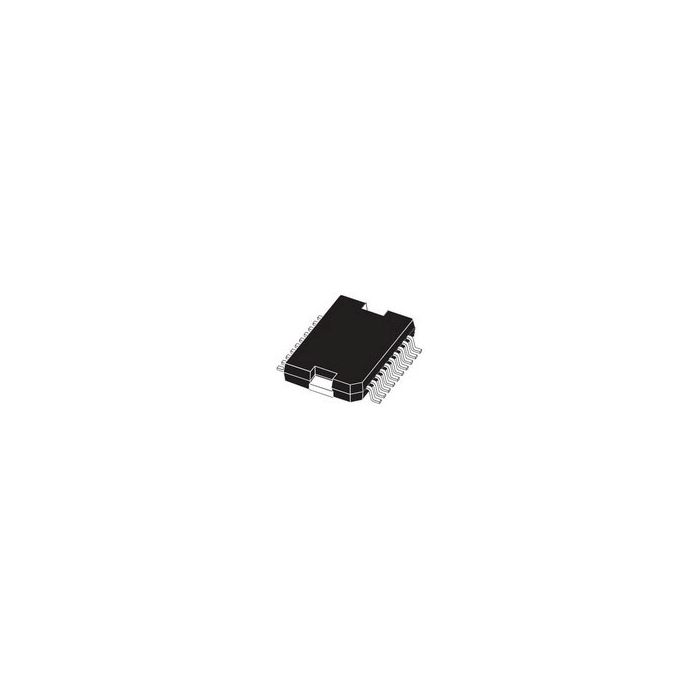

Standard Regulator Pos 5V 0.1A/0.4A Automotive 20-Pin PowerSO T/R

Informacje podstawowe

  • ProducentSTMicroelectronics
  • EURoHSYes with Exemption (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 4
  • Inventory 2
  • PCNs 14
  • MaskPart L4938EPD%
  • IntroductionDate Feb 01, 1999

Parametry

  • Accuracy (%) ±2
  • Junction to Ambient N/A
  • Junction to Case 2°C/W
  • Line Regulation 20mV
  • Load Regulation 50mV
  • Maximum Dropout Voltage @ Current (V) 0.2@10mA|0.4@100mA|0.3@100mA|0.6@400mA
  • Maximum Input Voltage (V) 28
  • Maximum Operating Temperature (°C) 150
  • Maximum Output Current (A) 0.1|0.4
  • Maximum Power Dissipation (mW) 875
  • Maximum Quiescent Current (mA) 20
  • Minimum Input Voltage (V) 6
  • Minimum Operating Temperature (°C) -40
  • Number of Outputs 2
  • Output Type Fixed
  • Output Voltage (V) 5
  • Output Voltage Range (V) 1.8 to 10
  • Polarity Positive
  • Reference Voltage (V) 1.23(Typ)
  • Special Features Thermal Protection
  • Supplier Temperature Grade Automotive
  • Type Standard
  • Typical Dropout Voltage @ Current (V) 0.1@10mA|0.2@100mA|0.3@400mA
  • Typical Power Dissipation (mW) N/A
  • Typical Quiescent Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description Standard Regulator Pos 5V 0.1A/0.4A Automotive 20-Pin PowerSO T/R
