KSZ8851SNL-TR

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
KSZ8851SNL-TR_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / KSZ8851SNL-TR

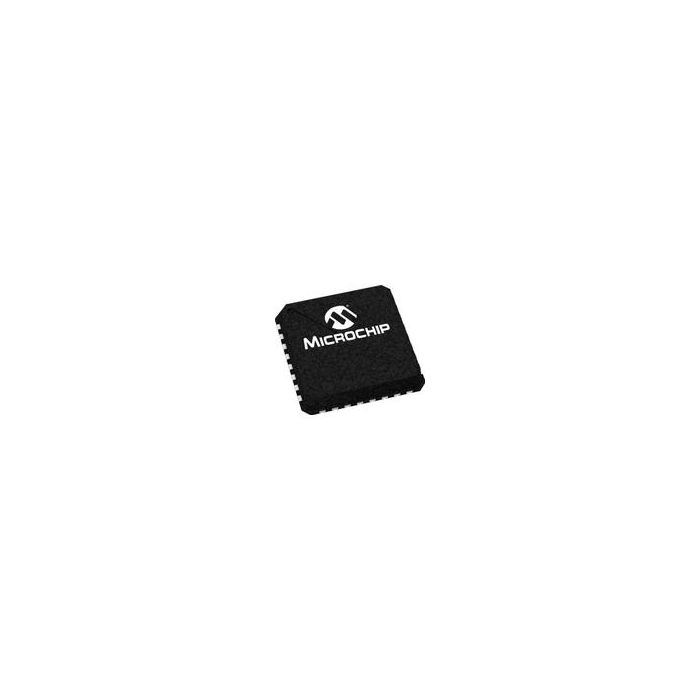

Ethernet CTLR Single Chip 10Mbps/100Mbps 3.3V Automotive 32-Pin QFN EP T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 3
  • Inventory 5
  • PCNs 60
  • MaskPart KSZ8851SNL%
  • IntroductionDate Jun 01, 2008

Parametry

  • Auto-Negotiation Yes
  • Category Single Chip
  • Communication Mode Full Duplex|Half Duplex
  • DMA Support Yes
  • Ethernet Interface Type MII
  • Ethernet Speed (Mbps) 10|100
  • Host Interface SPI
  • Loopback Mode N/A
  • Maximum Operating Supply Voltage (V) 3.5
  • Maximum Operating Temperature (°C) 70
  • Maximum Power Dissipation (W) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 3.1
  • Minimum Operating Temperature (°C) 0
  • Minimum Storage Temperature (°C) -65
  • Operating Supply Voltage (V) 1.8|2.5|3.3
  • Physical Network Type 10BASE-T|100BASE-TX
  • Standard Supported IEEE 802.3|IEEE 802.3u|IEEE 802.3x
  • Supplier Temperature Grade Commercial
  • Typical Operating Supply Voltage (V) 3.3

Więcej informacji

Do pobrania Download
Main description Ethernet CTLR Single Chip 10Mbps/100Mbps 3.3V Automotive 32-Pin QFN EP T/R
