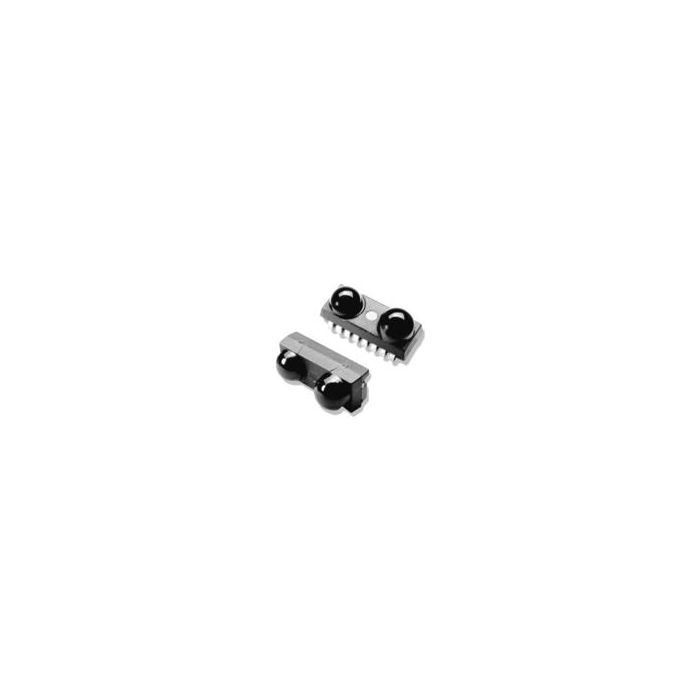

IRMT6452

ProducentVishayEURoHSNo (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
IRMT6452_VISHAY
0,00 zł

Zapytaj o ten produkt

Opis / IRMT6452

IRDA TX/RX 4Mbps 3.3V/5V 8-Pin T/R

Informacje podstawowe

  • ProducentVishay
  • EURoHSNo (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 32
  • PCNs 23
  • MaskPart IRMT6452%
  • IntroductionDate Nov 13, 2001

Parametry

  • Dimensions (mm) 9.8x4.8x4
  • Half Intensity Angle Degrees (°) 30(Min)
  • LED Supply Voltage (V) 2.7 to 3.3
  • Maximum Communication Distance (cm) N/A
  • Maximum Data Rate (Mbps) 4
  • Maximum Fall Time (ns) 40/50
  • Maximum Forward Current (mA) 100
  • Maximum Operating Supply Voltage (V) 5.25
  • Maximum Operating Temperature (°C) 75
  • Maximum Rise Time (ns) 40/60
  • Minimum Operating Supply Voltage (V) 2.7
  • Minimum Operating Temperature (°C) -25
  • Operating Supply Voltage (V) 2.7 to 5.25
  • Peak Wavelength (nm) 870
  • Pulse Width (us) 22.13/2.1
  • Radiant Intensity (mW/sr) 200
  • Supplier Temperature Grade N/A
  • Type TX/RX
  • Typical Operating Supply Voltage (V) 3.3|5

Więcej informacji

Do pobrania Download
Main description IRDA TX/RX 4Mbps 3.3V/5V 8-Pin T/R
