IRFR014TRLPBF

ProducentVishayEURoHSYes with Exemption (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
IRFR014TRLPBF_VISHAY
material
N/A
0,00 zł

Zapytaj o ten produkt

Opis / IRFR014TRLPBF

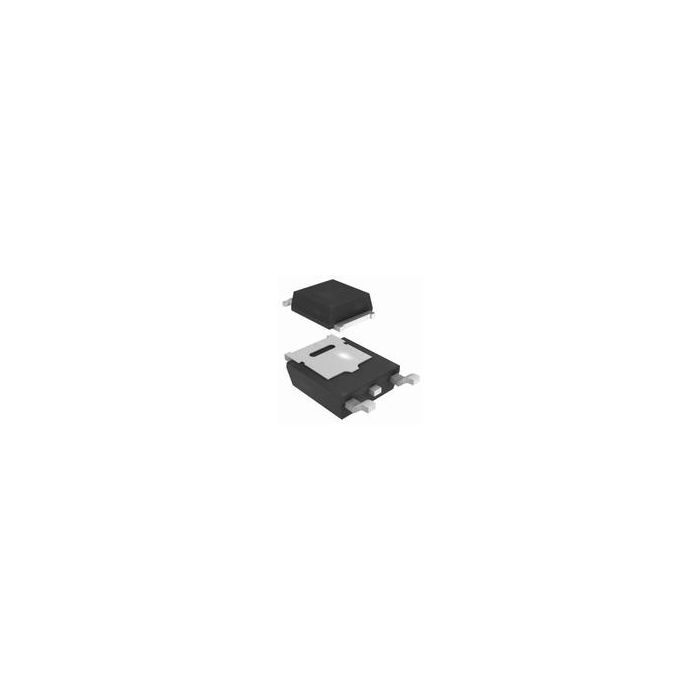

Trans MOSFET N-CH 60V 7.7A 3-Pin(2+Tab) DPAK T/R

Informacje podstawowe

  • ProducentVishay
  • EURoHSYes with Exemption (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 77
  • Inventory 1
  • PCNs 44
  • GIDEP-Alerts 3
  • MaskPart IRFR014%PBF
  • IntroductionDate Mar 27, 2007

Parametry

  • Category Power MOSFET
  • Channel Mode Enhancement
  • Channel Type N
  • Configuration Single
  • Material N/A
  • Maximum Continuous Drain Current (A) 7.7
  • Maximum Continuous Drain Current @ Temperature (A) 4.9@Tc=100C
  • Maximum Drain Source Resistance (mOhm) 200@10V
  • Maximum Drain Source Resistance @ Vgs (mOhm) 200@10V
  • Maximum Drain Source Voltage (V) 60
  • Maximum Gate Source Leakage Current (nA) 100
  • Maximum Gate Source Voltage (V) ±20
  • Maximum Gate Threshold Voltage (V) 4
  • Maximum IDSS (uA) 25
  • Maximum Junction Ambient Thermal Resistance 110°C/W
  • Maximum Junction Case Thermal Resistance 5°C/W
  • Maximum Operating Temperature (°C) 150
  • Maximum Power Dissipation (mW) 2500
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Temperature (°C) -55
  • Minimum Storage Temperature (°C) -55
  • Number of Elements per Chip 1
  • Process Technology N/A
  • Supplier Temperature Grade N/A
  • Typical Drain Source Resistance @ 125°C (mOhm) N/A
  • Typical Drain Source Resistance @ 25°C (mOhm) N/A
  • Typical Fall Time (ns) 19
  • Typical Forward Transconductance (S) 2.4(Min)
  • Typical Gate Charge @ 10V (nC) 11(Max)
  • Typical Gate Charge @ Vgs (nC) 11(Max)@10V
  • Typical Gate Resistance (Ohm) N/A
  • Typical Gate to Drain Charge (nC) 5.8(Max)
  • Typical Gate to Source Charge (nC) 3.1(Max)
  • Typical Input Capacitance @ Vds (pF) 300@25V
  • Typical Output Capacitance (pF) 160
  • Typical Reverse Recovery Charge (nC) 200
  • Typical Rise Time (ns) 50
  • Typical Switch Charge (nC) N/A
  • Typical Turn-Off Delay Time (ns) 13
  • Typical Turn-On Delay Time (ns) 10

Więcej informacji

Do pobrania Download
Main description Trans MOSFET N-CH 60V 7.7A 3-Pin(2+Tab) DPAK T/R
