ICL7116CQ

ProducentMaxim IntegratedAutomotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
ICL7116CQ_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / ICL7116CQ

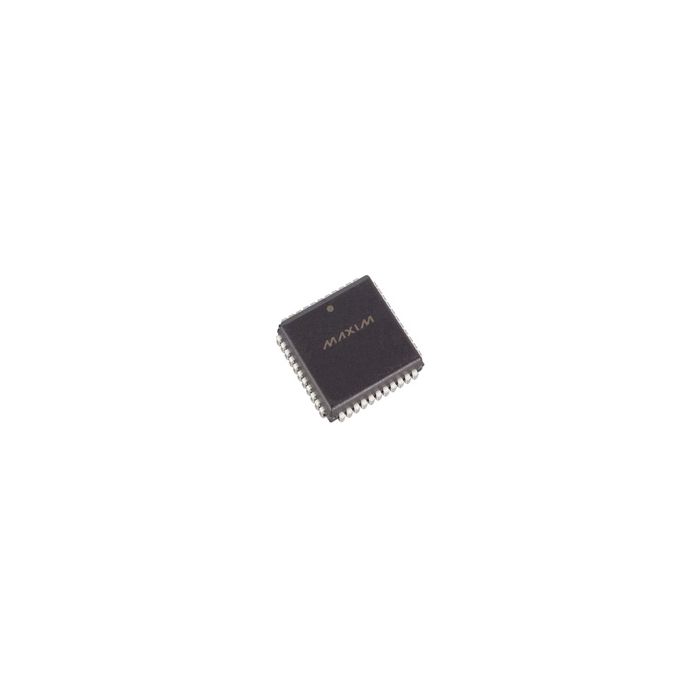

1-Channel Single ADC Dual Slope 3 1/2Digit LCD 44-Pin PLCC

Informacje podstawowe

  • ProducentMaxim Integrated
  • Automotive No

Informacje dodatkowe

  • Crosses 171
  • Inventory 1*
  • PCNs 7
  • MaskPart ICL7116CQ%
  • IntroductionDate Jan 01, 1985

Parametry

  • Architecture Dual Slope
  • Converter Type General Purpose
  • Differential Input Yes
  • Differential Nonlinearity N/A
  • Digital Interface Type LCD
  • Digital Supply Support No
  • Full Scale Error N/A
  • Input Signal Type Differential
  • Input Type Voltage
  • Input Voltage N/A
  • Integral Nonlinearity Error ±1Counts
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 70
  • Maximum Power Dissipation (mW) 800
  • Maximum Single Supply Voltage (V) N/A
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) 0
  • Minimum Single Supply Voltage (V) N/A
  • No Missing Codes (bit) N/A
  • Number of ADCs 1
  • Number of Input Channels 1
  • Polarity of Input Voltage N/A
  • Resolution 3 1/2Digit
  • Sample and Hold No
  • Sampling Rate N/A
  • Signal to Noise Ratio N/A
  • Single-Ended Input No
  • Supplier Temperature Grade Commercial
  • Typical Dual Supply Voltage (V) N/R
  • Typical Power Dissipation (mW) N/A
  • Typical Single Supply Voltage (V) 9
  • Voltage Reference Internal|External
  • Voltage Supply Source Single

Więcej informacji

Do pobrania Download
Main description 1-Channel Single ADC Dual Slope 3 1/2Digit LCD 44-Pin PLCC
