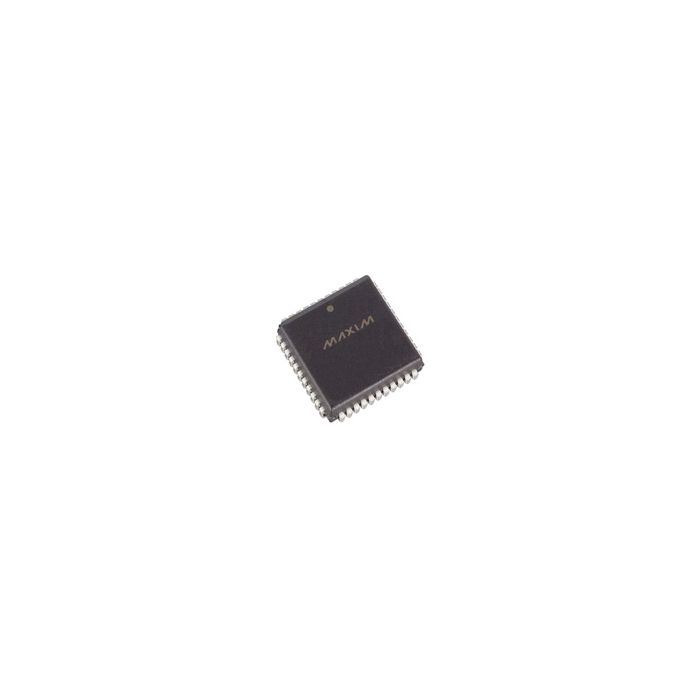

ICL7109IQH+TD

ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
ICL7109IQH+TD_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / ICL7109IQH+TD

1-Channel Single ADC 30sps 12-bit Parallel 44-Pin PLCC T/R

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 48
  • PCNs 7
  • MaskPart ICL7109IQH+D%
  • IntroductionDate Jan 25, 1996

Parametry

  • Architecture N/A
  • Converter Type General Purpose
  • Differential Input Yes
  • Differential Nonlinearity N/A
  • Digital Interface Type Parallel
  • Digital Supply Support No
  • Full Scale Error N/A
  • Input Signal Type Differential
  • Input Type Voltage
  • Input Voltage N/A
  • Integral Nonlinearity Error ±1Counts
  • Maximum Dual Supply Voltage (V) N/A
  • Maximum Negative Supply Voltage (V) N/A
  • Maximum Operating Temperature (°C) 85
  • Maximum Positive Supply Voltage (V) N/A
  • Maximum Power Dissipation (mW) N/A
  • Maximum Single Supply Voltage (V) N/R
  • Minimum Dual Supply Voltage (V) N/A
  • Minimum Negative Supply Voltage (V) N/A
  • Minimum Operating Temperature (°C) -20
  • Minimum Positive Supply Voltage (V) N/A
  • Minimum Single Supply Voltage (V) N/R
  • No Missing Codes (bit) N/A
  • Number of ADCs 1
  • Number of Input Channels 1
  • Polarity of Input Voltage N/A
  • Resolution 12bit
  • Sample and Hold No
  • Sampling Rate 30sps
  • Signal to Noise Ratio N/A
  • Single-Ended Input No
  • Supplier Temperature Grade N/A
  • Typical Dual Supply Voltage (V) ±5
  • Typical Power Dissipation (mW) N/A
  • Typical Single Supply Voltage (V) N/R
  • Voltage Reference Internal|External
  • Voltage Supply Source Dual

Więcej informacji

Do pobrania Download
Main description 1-Channel Single ADC 30sps 12-bit Parallel 44-Pin PLCC T/R
