HV9910CNG-G M934

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
HV9910CNG-G_M934_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / HV9910CNG-G M934

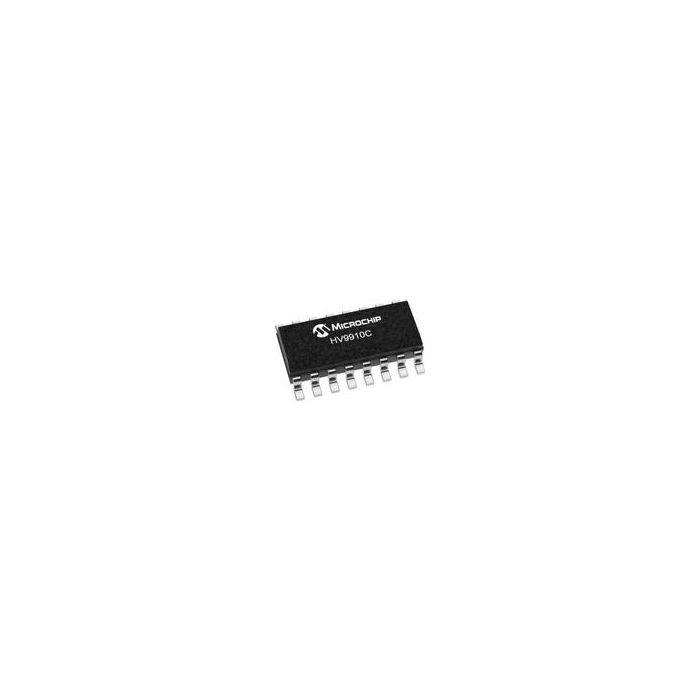

LED Driver 1500uA Supply Current 16-Pin SOIC N T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 64
  • Inventory 2
  • PCNs 48
  • MaskPart HV9910CNGGM934%
  • IntroductionDate Apr 24, 2013

Parametry

  • High Level Output Current (uA) N/A
  • Low Level Output Current (uA) N/A
  • Maximum Operating Supply Voltage (V) 450
  • Maximum Operating Temperature (°C) 150
  • Maximum Power Dissipation (mW) 1300
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (uA) 1500
  • Minimum Operating Supply Voltage (V) 15
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Digits N/A
  • Number of Segments N/A
  • Operating Supply Voltage (V) 15 to 450
  • Output Voltage (V) N/A
  • Supplier Temperature Grade N/A
  • Typical Operating Supply Voltage (V) 18|24

Więcej informacji

Do pobrania Download
Main description LED Driver 1500uA Supply Current 16-Pin SOIC N T/R
