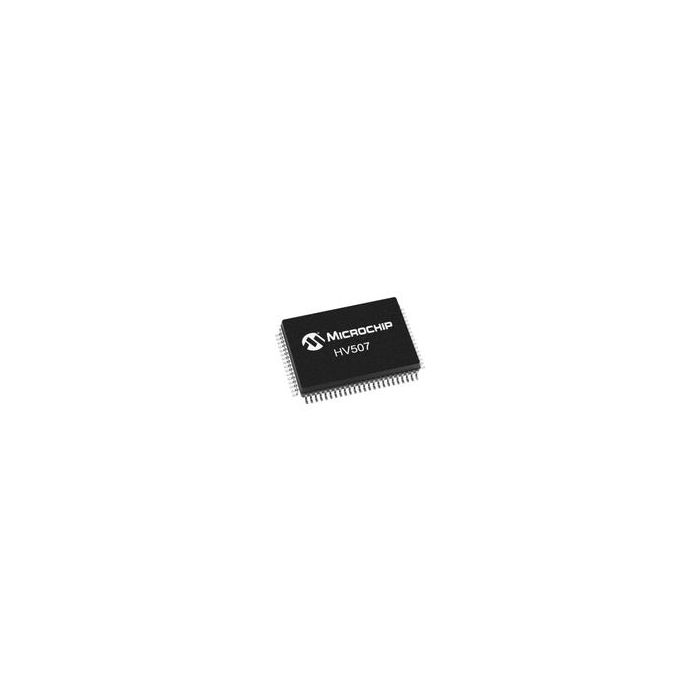

HV507PG-G

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
HV507PG-G_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / HV507PG-G

Shift Register/Latch/Driver Single 64-Bit Serial to Parallel 80-Pin PQFP Tray

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 1
  • Inventory 9
  • PCNs 50
  • GIDEP-Alerts 2
  • MaskPart HV507PGG%
  • IntroductionDate Feb 06, 2002

Parametry

  • Absolute Propagation Delay Time (ns) N/A
  • Direction Type Uni-Directional
  • Logic Family N/A
  • Logic Function Shift Register/Latch/Driver
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 70
  • Maximum Propagation Delay Time @ Maximum CL (ns) 125@5V
  • Maximum Quiescent Current (mA) 0.2
  • Minimum Operating Supply Voltage (V) 4.5
  • Minimum Operating Temperature (°C) 0
  • Number of Count Input Enables 0
  • Number of Element Inputs 2
  • Number of Element Outputs 64
  • Number of Elements per Chip 1
  • Number of Selection Inputs per Element 0
  • Number of Stages 64
  • Operation Mode Serial to Parallel
  • Output Type N/A
  • Parallel Enable Input No
  • Preset Type N/A
  • Process Technology CMOS
  • Propagation Delay Test Condition (pF) 20
  • Reset Type N/A
  • Supplier Temperature Grade N/A
  • Terminal Count Output No
  • Tolerant I/Os (V) N/A
  • Triggering Type Positive-Edge
  • Type N/R
  • Typical Operating Supply Voltage (V) 5

Więcej informacji

Do pobrania Download
Main description Shift Register/Latch/Driver Single 64-Bit Serial to Parallel 80-Pin PQFP Tray
