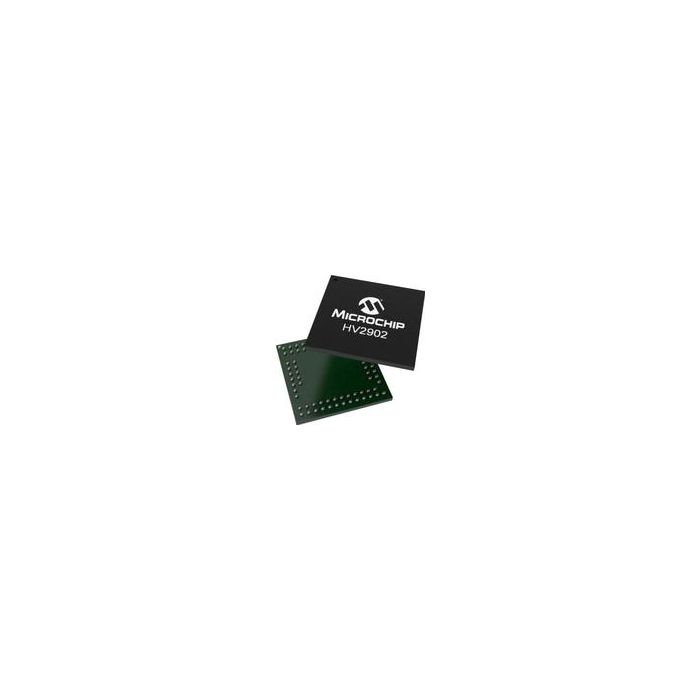

HV2902GA-G
| Do pobrania | Download |
|---|---|
| Main description | Analog Switch 32 SPST 78-Pin VFBGA Tray |
Analog Switch 32 SPST 78-Pin VFBGA Tray
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Inventory 4
- PCNs 46
- MaskPart HV2902GAG%
Parametry
- Chip Enable Signals Yes
- Configuration 32 SPST
- Function General
- Input Signal Type Single
- Latch-Up Proof Yes
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) 40|-160
- Maximum Frequency (25°C) @ Vcc (MHz) 20@5V
- Maximum High Level Output Current (mA) N/A
- Maximum Low Level Output Current (mA) N/A
- Maximum On Resistance (Ohm) 38@40V@-160V
- Maximum On Resistance Range (Ohm) 35 to 45
- Maximum Power Dissipation (mW) 1500
- Maximum Propagation Delay Bus to Bus (ns) N/A
- Maximum Single Supply Voltage (V) N/R
- Maximum Supply Current (mA) ±14@40V@-160V
- Maximum Turn-Off Time (ns) 5000@±100V
- Maximum Turn-On Time (ns) 5000@±100V
- Minimum Dual Supply Voltage (V) ±40
- Minimum Single Supply Voltage (V) N/R
- Multiplexer Architecture N/R
- Number of Channels per Chip 32
- Number of Inputs per Chip 32
- Number of Outputs per Chip 32
- Output Signal Type Single
- Polarity Non-Inverting
- Power Supply Type Dual
- Propagation Delay Test Condition (pF) N/A
- Special Features N/A
- Supplier Temperature Grade N/A
- Switch Architecture SPST
- Switch Control Logic Active High
- Switch Normal Position NO
- Type Analog Switch
- Typical Dual Supply Voltage (V) ±100
- Typical Single Supply Voltage (V) N/R
- Typical Supply Current (mA) N/A
