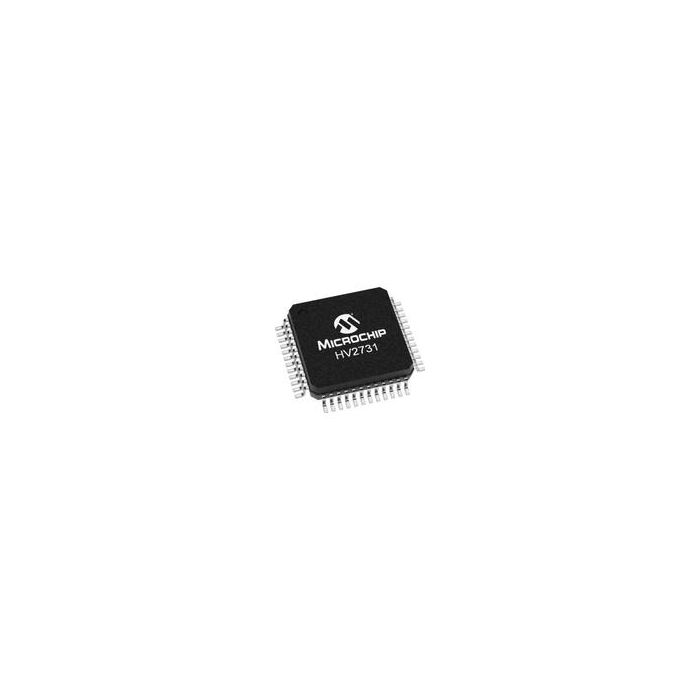

HV2731FG-G
| Do pobrania | Download |
|---|---|
| Main description | Analog Switch Hexadecimal SPST 48-Pin LQFP Tray |
Analog Switch Hexadecimal SPST 48-Pin LQFP Tray
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 9
- Inventory 5
- PCNs 49
- MaskPart HV2731FGG%
- IntroductionDate Dec 18, 2007
Parametry
- Chip Enable Signals Yes
- Configuration Hexadecimal SPST
- Function General
- Input Signal Type Single
- Logic Family N/A
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) 110|-220
- Maximum Frequency (25°C) @ Vcc (MHz) N/A
- Maximum High Level Output Current (mA) N/A
- Maximum Low Level Output Current (mA) N/A
- Maximum On Resistance (Ohm) 32@50V@-170V
- Maximum On Resistance Range (Ohm) 25 to 35
- Maximum Power Dissipation (mW) 1000
- Maximum Propagation Delay Bus to Bus (ns) N/A
- Maximum Single Supply Voltage (V) N/R
- Maximum Supply Current (mA) ±8.8@50V@-170V
- Maximum Turn-Off Time (ns) 5000
- Maximum Turn-On Time (ns) 5000
- Minimum Dual Supply Voltage (V) -10|50
- Minimum Single Supply Voltage (V) N/R
- Multiplexer Architecture N/R
- Number of Channels per Chip 16
- Number of Inputs per Chip 16
- Number of Outputs per Chip 16
- Output Signal Type Single
- Polarity Non-Inverting
- Power Supply Type Dual
- Propagation Delay Test Condition (pF) N/A
- Special Features N/A
- Supplier Temperature Grade N/A
- Switch Architecture SPST
- Switch Control Logic Active High
- Switch Normal Position NO
- Type Analog Switch
- Typical Dual Supply Voltage (V) 12|15|18|24|28
- Typical Single Supply Voltage (V) N/R
- Typical Supply Current (mA) N/A
