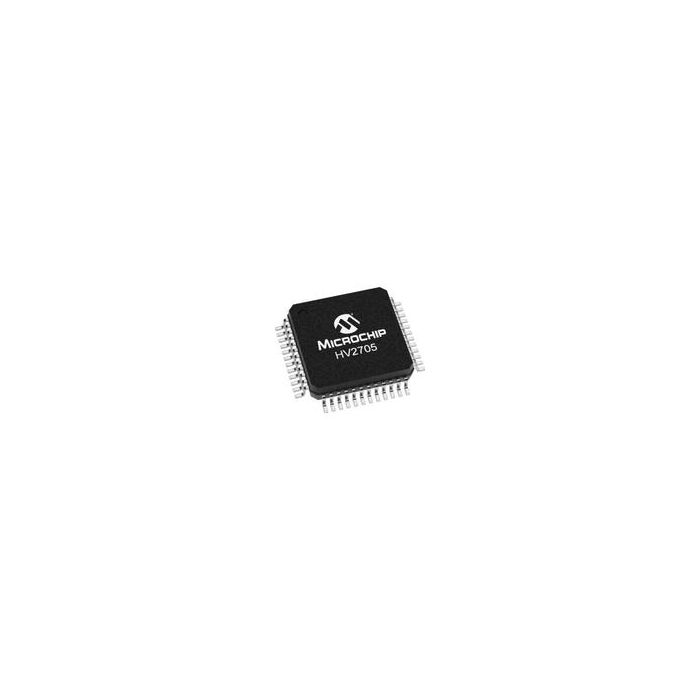

HV2705BD-M936
ProducentMicrochip TechnologyEURoHSUnknown (2011/65/EU)Automotive No.
- SKU
- HV2705BD-M936_MICROCHIP_TECHNOLOGY
0,00 zł
Opis / HV2705BD-M936
Analog Switch Hexadecimal SPST 48-Pin LQFP T/R
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSUnknown (2011/65/EU)
- Automotive No
Informacje dodatkowe
- Crosses 2
- Inventory 2
- PCNs 47
- GIDEP-Alerts 2
- MaskPart HV2705BD%
Parametry
- Chip Enable Signals Yes
- Configuration Hexadecimal SPST
- Function General
- Input Signal Type Single
- Latch-Up Proof No
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) 40|-160
- Maximum Frequency (25°C) @ Vcc (MHz) N/A
- Maximum High Level Output Current (mA) 0.7(Typ)
- Maximum Low Level Output Current (mA) N/A
- Maximum On Resistance (Ohm) 38@40V@-160V
- Maximum On Resistance Range (Ohm) 35 to 45
- Maximum Power Dissipation (mW) 1000
- Maximum Propagation Delay Bus to Bus (ns) N/A
- Maximum Single Supply Voltage (V) N/R
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) ±7@40V@-160V
- Maximum Turn-Off Time (ns) 5000
- Maximum Turn-On Time (ns) 5000
- Minimum Dual Supply Voltage (V) ±40
- Minimum Single Supply Voltage (V) N/R
- Minimum Storage Temperature (°C) -65
- Multiplexer Architecture N/R
- Number of Channels per Chip 16
- Number of Inputs per Chip 16
- Number of Outputs per Chip 16
- Output Signal Type Single
- Polarity Non-Inverting
- Power Supply Type Dual
- Propagation Delay Test Condition (pF) N/A
- Special Features N/A
- Supplier Temperature Grade N/A
- Switch Architecture SPST
- Switch Control Logic Active High
- Switch Normal Position NO
- Type Analog Switch
- Typical Dual Supply Voltage (V) ±100
- Typical Single Supply Voltage (V) N/R
- Typical Supply Current (mA) N/A
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | Analog Switch Hexadecimal SPST 48-Pin LQFP T/R |
