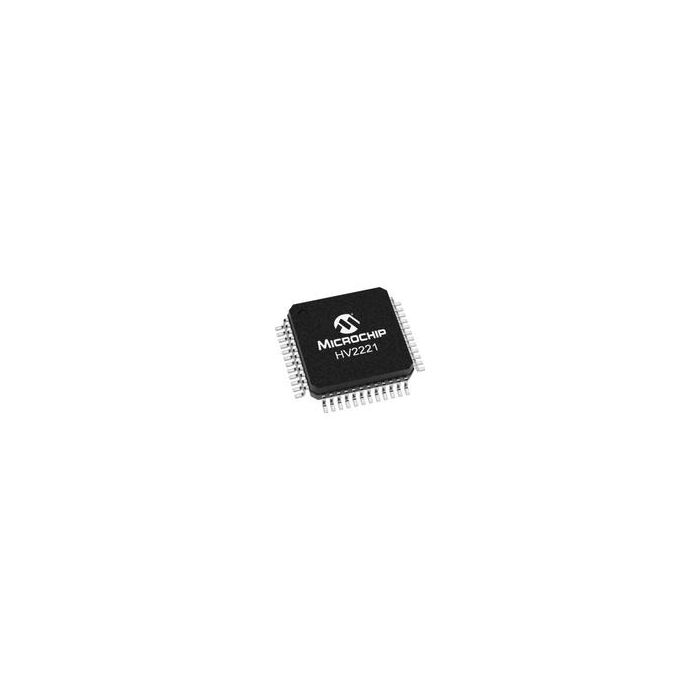

HV2221FG-G

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
HV2221FG-G_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / HV2221FG-G

Analog Switch Octal SPST 48-Pin LQFP Tray

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 14
  • Inventory 5
  • PCNs 49
  • MaskPart HV2221FGG%
  • IntroductionDate Nov 30, 2007

Parametry

  • Chip Enable Signals Yes
  • Configuration Octal SPST
  • Function General
  • Input Signal Type Single
  • Maximum Data Rate (Mbps) N/A
  • Maximum Dual Supply Voltage (V) 50|-225
  • Maximum Frequency (25°C) @ Vcc (MHz) N/A
  • Maximum High Level Output Current (mA) 0.7(Typ)
  • Maximum Low Level Output Current (mA) N/A
  • Maximum On Resistance (Ohm) 23@15V@-225V
  • Maximum On Resistance Range (Ohm) 10 to 25
  • Maximum Operating Temperature (°C) 70
  • Maximum Power Dissipation (mW) 1000
  • Maximum Propagation Delay Bus to Bus (ns) N/A
  • Maximum Single Supply Voltage (V) N/R
  • Maximum Supply Current (mA) ±7.5@40V@-200V
  • Maximum Turn-Off Time (ns) 5000@5V
  • Maximum Turn-On Time (ns) 5000@5V
  • Minimum Dual Supply Voltage (V) 15|-100
  • Minimum Operating Temperature (°C) 0
  • Minimum Single Supply Voltage (V) N/R
  • Multiplexer Architecture N/R
  • Number of Channels per Chip 8
  • Number of Inputs per Chip 8
  • Number of Outputs per Chip 8
  • Output Signal Type Single
  • Polarity Non-Inverting
  • Power Supply Type Dual
  • Propagation Delay Test Condition (pF) N/A
  • Special Features N/A
  • Supplier Temperature Grade N/A
  • Switch Architecture SPST
  • Switch Control Logic Active High
  • Switch Normal Position NO
  • Type Analog Switch
  • Typical Dual Supply Voltage (V) 18|24|28
  • Typical Single Supply Voltage (V) N/R
  • Typical Supply Current (mA) 5.6@40V/-5.8@-200V

Więcej informacji

Do pobrania Download
Main description Analog Switch Octal SPST 48-Pin LQFP Tray
