HV1840-2R7606-R

ProducentEatonEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
HV1840-2R7606-R_EATON
0,00 zł

Zapytaj o ten produkt

Opis / HV1840-2R7606-R

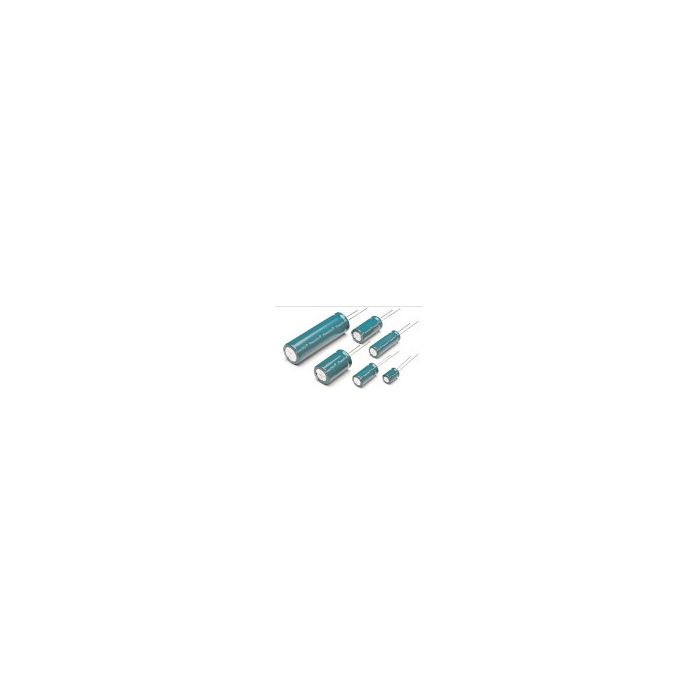

Cap Supercap 60F 2.7V -10% to 30% (18.5 X 42mm) Radial Aluminum Cylindrical Can 7.5mm 110uA 0.018 Ohm 1000h 65°C Bulk

Informacje podstawowe

  • ProducentEaton
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Inventory 6
  • PCNs 66
  • GIDEP-Alerts 1
  • IntroductionDate Jan 10, 2011

Parametry

  • Capacitance Value 60F
  • Construction Aluminum Cylindrical Can
  • Equivalent Series Inductance (nH) N/A
  • Equivalent Series Resistance (Ohm) 0.018
  • Equivalent Series Resistance Type Ultra Low
  • Failure Rate N/R
  • Leakage Current (uA) 110
  • Lifetime (h) 1000
  • Maximum Operating Temperature (°C) 65
  • Maximum Storage Temperature (°C) N/A
  • Military Standard N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) N/A
  • Operating Temperature (°C) -40 to 65
  • Package Region World Wide
  • Polarity Polar
  • Ripple Current (mA) N/A
  • Tolerance -10% to 30%
  • Tradename PowerStor®
  • Voltage 2.7VDC

Więcej informacji

Do pobrania Download
Main description Cap Supercap 60F 2.7V -10% to 30% (18.5 X 42mm) Radial Aluminum Cylindrical Can 7.5mm 110uA 0.018 Ohm 1000h 65°C Bulk
