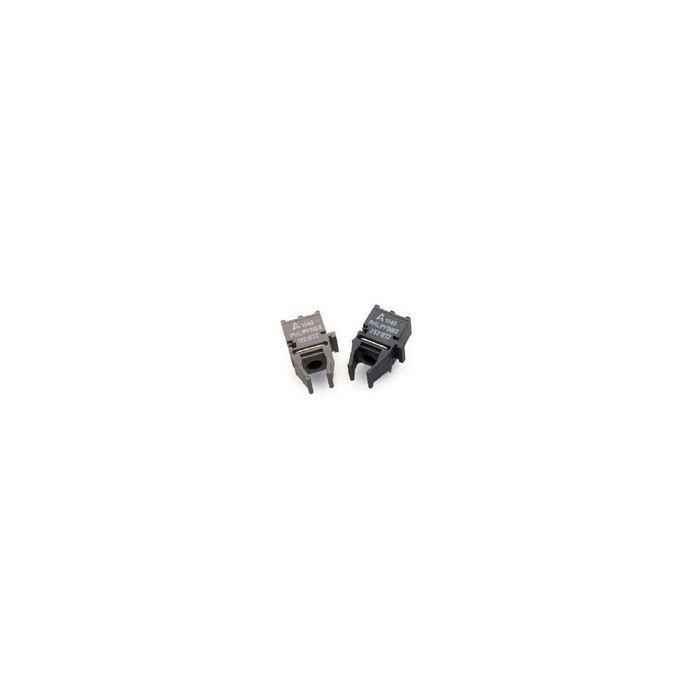

HFBR-1521ETZ

ProducentBroadcom LimitedEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
HFBR-1521ETZ_BROADCOM_LIMITED
0,00 zł

Zapytaj o ten produkt

Opis / HFBR-1521ETZ

TX Optical Fiber 5MBd Automotive 6-Pin

Informacje podstawowe

  • ProducentBroadcom Limited
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Inventory 6
  • PCNs 62
  • GIDEP-Alerts 1
  • MaskPart HFBR1521ETZ%
  • IntroductionDate Nov 04, 2010

Parametry

  • Average Optical Output Power (dBm) -14.3 to -8
  • Connector Type N/A
  • Contact Resistance (MOhm) N/A
  • Dissipation Current (mA) N/A
  • Emitter Type LED
  • Fiber Mode N/A
  • Form Factor N/A
  • Jitter (ns) N/A
  • Maximum Data Rate 5MBd
  • Maximum Distance (m) 38
  • Maximum Fall Time (ns) 20(Typ)
  • Maximum Forward Current (mA) 80
  • Maximum Operating Supply Voltage (V) N/A
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (mA) N/A
  • Maximum Power Dissipation (mW) N/A
  • Maximum Storage Temperature (°C) 85
  • Minimum Isolation Voltage (kV) N/A
  • Minimum Operating Supply Voltage (V) N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -40
  • Operating Supply Voltage (V) N/A
  • Peak Wavelength (nm) 660
  • Rise Time (ns) 20(Typ)
  • Supplier Temperature Grade N/A
  • Transfer Speed N/A
  • Type TX
  • Typical Breakdown Voltage (V) N/A
  • Typical Diode Capacitance (pF) 86
  • Typical Forward Voltage (V) 1.67
  • Typical Operating Supply Voltage (V) N/A

Więcej informacji

Do pobrania Download
Main description TX Optical Fiber 5MBd Automotive 6-Pin
