HEF4051BT,653
ProducentNexperiaEURoHSYes (2011/65/EU, 2015/863)Automotive No.
- SKU
- HEF4051BT,653_NEXPERIA
0,00 zł
Opis / HEF4051BT,653

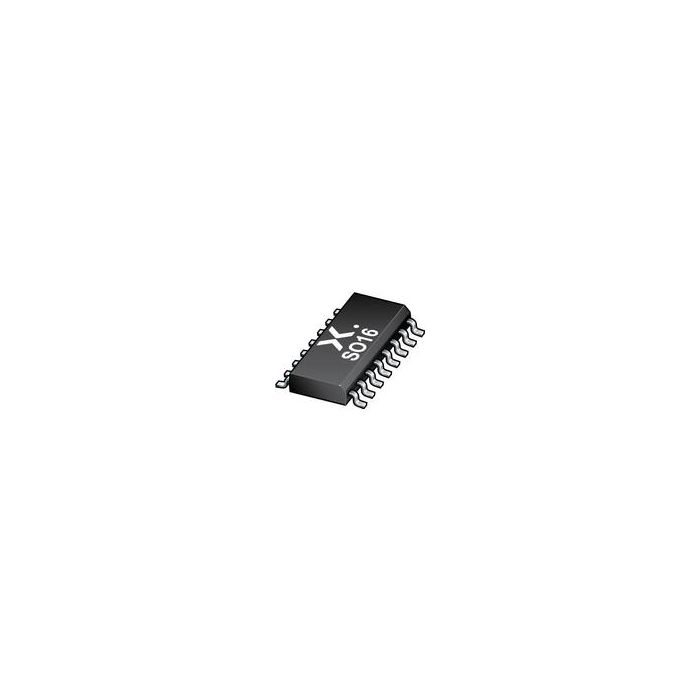

Analog Multiplexer Single 8:1 16-Pin SO T/R
Informacje podstawowe
- ProducentNexperia
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 16
- Inventory 11
- PCNs 36
- GIDEP-Alerts 1
- MaskPart HEF4051BT%
- IntroductionDate Jan 01, 1995
- AliasParts HEF4051BTD-T933372940653
Parametry
- Chip Enable Signals Yes
- Configuration Single 8:1
- Function General
- Input Signal Type Single
- Logic Family HEF4000
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) N/R
- Maximum Frequency (25°C) @ Vcc (MHz) 13(Typ)@5V|40(Typ)@10V|70(Typ)@15V
- Maximum High Level Output Current (mA) 10
- Maximum Low Level Output Current (mA) 10
- Maximum On Resistance (Ohm) 2500@5V
- Maximum On Resistance Range (Ohm) >=1000
- Maximum Power Dissipation (mW) 500
- Maximum Propagation Delay Bus to Bus (ns) 90@15V|130@10V|300@5V
- Maximum Single Supply Voltage (V) 15
- Maximum Supply Current (mA) 5@5V
- Maximum Turn-Off Time (ns) 290@5V
- Maximum Turn-On Time (ns) 280@5V
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 3
- Multiplexer Architecture 8:1
- Number of Channels per Chip 1
- Number of Inputs per Chip 8
- Number of Outputs per Chip 1
- Output Signal Type Single
- Polarity N/A
- Power Supply Type Single
- Propagation Delay Test Condition (pF) 50
- Special Features N/A
- Supplier Temperature Grade N/A
- Switch Architecture N/R
- Switch Control Logic N/R
- Switch Normal Position N/R
- Type Analog Multiplexer
- Typical Dual Supply Voltage (V) N/R
- Typical Single Supply Voltage (V) 5|9|12
- Typical Supply Current (mA) N/A
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | Analog Multiplexer Single 8:1 16-Pin SO T/R |
