HD64F3048F16-V
| Do pobrania | Download |
|---|---|

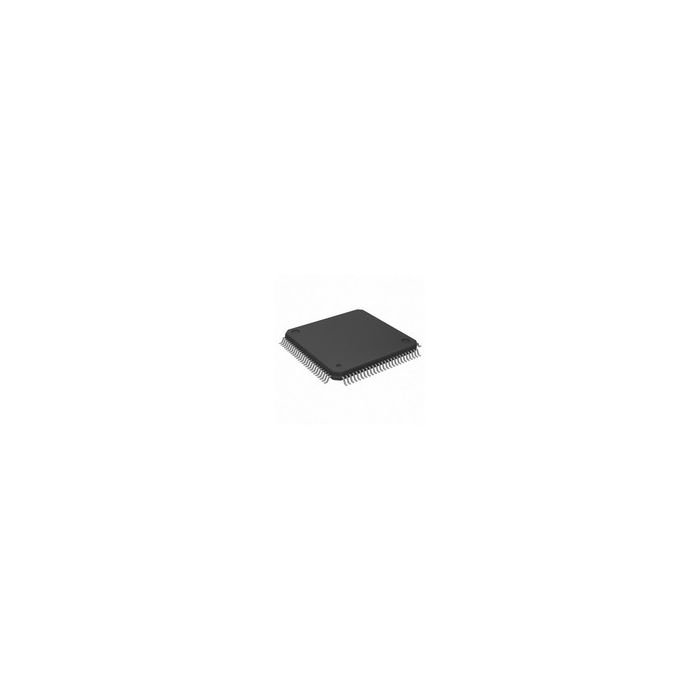

| Main description | MCU 16-bit H8/300 CISC 128KB Flash 5V 100-Pin PQFP |
MCU 16-bit H8/300 CISC 128KB Flash 5V 100-Pin PQFP
Informacje podstawowe
- ProducentRenesas Electronics
- EURoHSYes (2002/95/EC)
- Automotive No
Informacje dodatkowe
- Crosses 38
- PCNs 5
- MaskPart HD64F3048F16V%
- IntroductionDate Feb 03, 2003
Parametry
- ADC Channels 8
- ADC Resolution (bit) 10
- Analog Comparators N/A
- CAN 0
- DAC Channels 2
- DAC Resolution (bit) 8
- Data Bus Width (bit) 16
- Data Memory Size N/A
- Device Core H8/300
- Display Driver N/A
- Ethernet 0
- Family Name H8
- I2C 0
- I2S 0
- Instruction Set Architecture CISC
- Interface Type SCI
- LCD Segments N/A
- Maximum CPU Frequency (MHz) 16
- Maximum Clock Rate (MHz) 16
- Maximum Expanded Memory Size 16MB
- Maximum Power Dissipation (mW) N/A
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -65
- Number of ADCs Single
- Number of DACs Single
- Number of Programmable I/Os 70
- Number of Timers 5
- PWM 4
- Program Memory Size 128KB
- Program Memory Type Flash
- Programmability Yes
- RAM Size 4KB
- SPI 0
- Special Features N/A
- Supplier Temperature Grade N/A
- Temperature Flag Opr
- UART 0
- USART 0
- USB 0
- Watchdog 1
