HD64F2623FA20J
| Do pobrania | Download |
|---|---|
| Main description | MCU 16-bit CISC 256KB Flash 3.3V/5V 100-Pin PQFP |

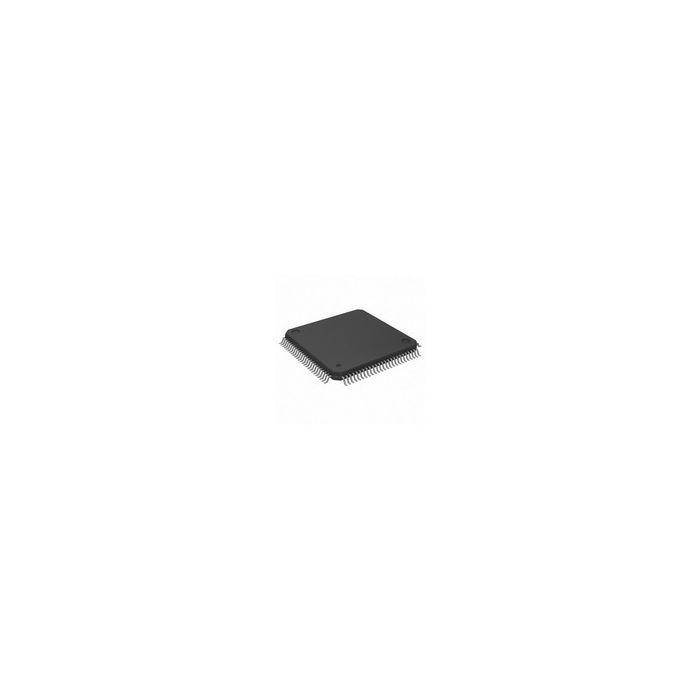

MCU 16-bit CISC 256KB Flash 3.3V/5V 100-Pin PQFP
Informacje podstawowe
- ProducentRenesas Electronics
- EURoHSNo (2011/65/EU)
- Automotive No
Informacje dodatkowe
- Crosses 2
- PCNs 5
- MaskPart HD64F2623FA20J%
- IntroductionDate Dec 24, 2005
Parametry
- ADC Channels 16
- ADC Resolution (bit) 10
- Analog Comparators N/A
- CAN 1
- DAC Channels 2
- DAC Resolution (bit) 8
- Data Bus Width (bit) 16
- Data Memory Size N/A
- Device Core N/A
- Display Driver N/A
- Ethernet 0
- Family Name H8S
- I2C 0
- I2S 0
- Instruction Set Architecture CISC
- Interface Type CAN/SCI
- LCD Segments N/A
- Maximum CPU Frequency (MHz) 20
- Maximum Clock Rate (MHz) 20
- Maximum Expanded Memory Size 16MB
- Maximum Power Dissipation (mW) N/A
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -65
- Number of ADCs Single
- Number of DACs Single
- Number of Programmable I/Os 53
- Number of Timers 6
- PWM N/A
- Program Memory Size 256KB
- Program Memory Type Flash
- Programmability Yes
- RAM Size 12KB
- SPI 0
- Special Features CAN Controller
- Supplier Temperature Grade N/A
- Temperature Flag Opr
- UART 0
- USART 0
- USB 0
- Watchdog 1
