HCPL-M453-500E

ProducentBroadcom LimitedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
HCPL-M453-500E_BROADCOM_LIMITED
0,00 zł

Zapytaj o ten produkt

Opis / HCPL-M453-500E

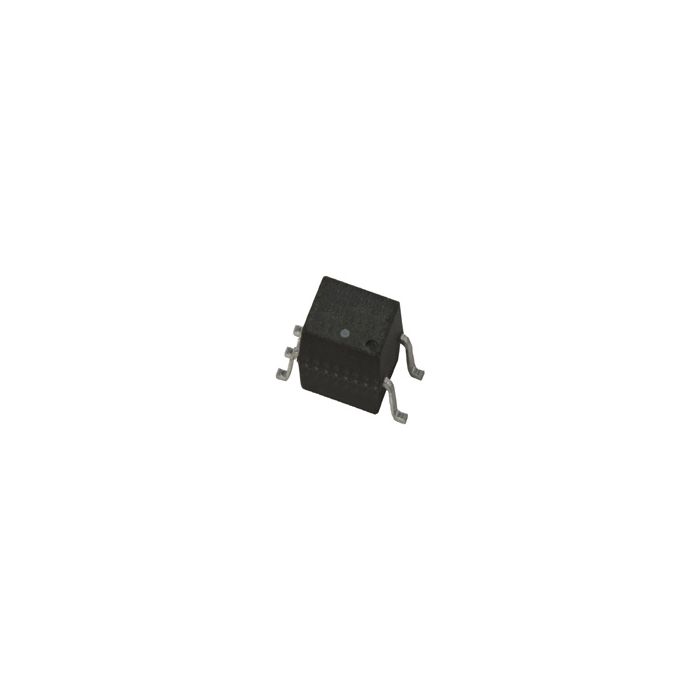

Optocoupler DC-IN 1-CH Transistor With Base DC-OUT 5-Pin SOIC T/R

Informacje podstawowe

  • ProducentBroadcom Limited
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 59
  • Inventory 3
  • PCNs 70
  • GIDEP-Alerts 1
  • MaskPart HCPLM453500E%
  • IntroductionDate May 31, 2005

Parametry

  • Common Mode Voltage (V) 1500
  • Current Transfer Ratio Test Current (mA) 16
  • Input Type DC
  • Maximum Collector Current (mA) 8
  • Maximum Collector-Emitter Saturation Voltage (mV) N/A
  • Maximum Collector-Emitter Voltage (V) N/A
  • Maximum Current Transfer Ratio (%) 50
  • Maximum Data Rate N/A
  • Maximum Fall Time (us) N/A
  • Maximum Forward Current (mA) 25
  • Maximum Forward Voltage (V) 1.7
  • Maximum Operating Temperature (°C) 70
  • Maximum Power Dissipation (mW) 100
  • Maximum Propagation Delay Time (tPHL) (ns) 800
  • Maximum Propagation Delay Time (tPLH) (ns) 800
  • Maximum Reverse Voltage (V) 5
  • Maximum Rise Time (us) N/A
  • Maximum Storage Temperature (°C) 125
  • Maximum Supply Voltage (V) N/A
  • Maximum Working Insulation Voltage (V) N/A
  • Minimum Collector Emitter Voltage (V) N/A
  • Minimum Common Mode Rejection (kV/us) 15
  • Minimum Current Transfer Ratio (%) 20
  • Minimum Forward Voltage (V) N/A
  • Minimum Isolation Voltage (Vrms) 3750
  • Minimum Operating Temperature (°C) 0
  • Minimum Storage Temperature (°C) -55
  • Number of Channels per Chip 1
  • Output Device Transistor With Base
  • Output Type DC
  • Standard UL
  • Supplier Temperature Grade N/A
  • Typical Bandwidth (MHz) 3
  • Typical Fall Time (us) N/A
  • Typical Forward Voltage (V) 1.5
  • Typical Rise Time (us) N/A

Więcej informacji

Do pobrania Download
Main description Optocoupler DC-IN 1-CH Transistor With Base DC-OUT 5-Pin SOIC T/R
