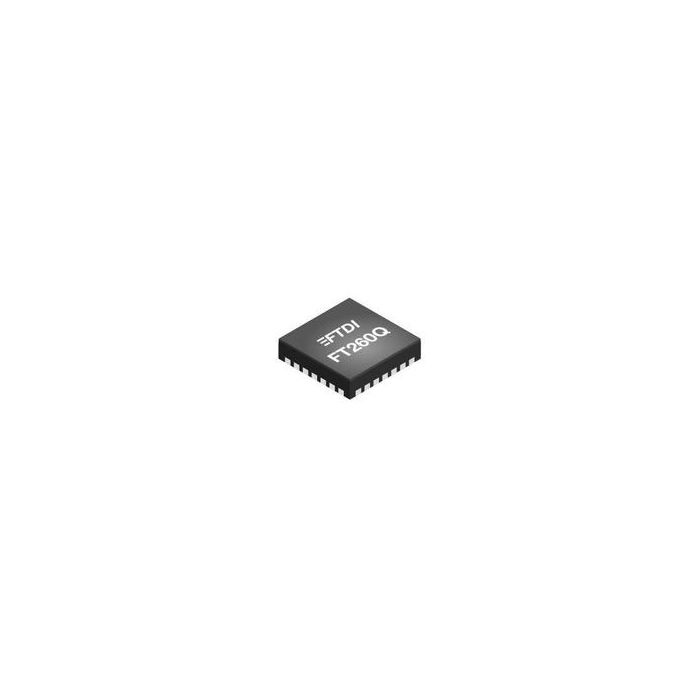

FT260Q-T

ProducentFTDI ChipEURoHSYes (2011/65/EU, 2015/863)Automotive Unknown.
Powiadom mnie gdy produkt będzie dostępny
SKU
FT260Q-T_FTDI_CHIP
0,00 zł

Zapytaj o ten produkt

Opis / FT260Q-T

Full Speed/High Speed USB to I2C Interface USB 2.0 5V Tray 28-Pin WQFN EP

Informacje podstawowe

  • ProducentFTDI Chip
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Unknown

Informacje dodatkowe

  • Inventory 4
  • MaskPart FT260QT%

Parametry

  • Interface Type I2C/UART
  • Maximum Data Rate (Mbps) N/A
  • Maximum Operating Frequency (MHz) 48
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 4.5
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Protocols Supported USB 2.0
  • Supplier Temperature Grade N/A
  • Type USB to I2C Interface
  • Typical Operating Supply Voltage (V) 5
  • Typical Supply Current (mA) 23.6
  • USB Speed Type Full Speed|High Speed
  • USB Transceiver Yes

Więcej informacji

Do pobrania Download
Main description Full Speed/High Speed USB to I2C Interface USB 2.0 5V Tray 28-Pin WQFN EP
