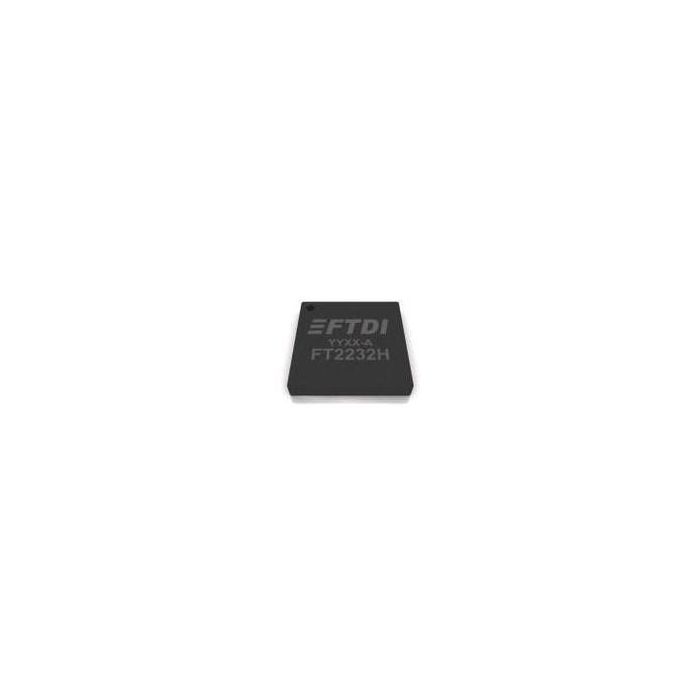

FT2232H-56Q-REEL

ProducentFTDI ChipEURoHSYes (2011/65/EU)Automotive Unknown.
Powiadom mnie gdy produkt będzie dostępny
SKU
FT2232H-56Q-REEL_FTDI_CHIP
0,00 zł

Zapytaj o ten produkt

Opis / FT2232H-56Q-REEL

High Speed USB to UART/MPSSE USB 2.0 1.8V/3.3V T/R 56-Pin VQFN EP

Informacje podstawowe

  • ProducentFTDI Chip
  • EURoHSYes (2011/65/EU)
  • Automotive Unknown

Informacje dodatkowe

  • Inventory 3
  • PCNs 1
  • MaskPart FT2232H56QREEL%
  • IntroductionDate Jul 07, 2016

Parametry

  • Interface Type I2C/UART
  • Maximum Data Rate (Mbps) 480
  • Maximum Operating Frequency (MHz) 12(Typ)
  • Maximum Operating Supply Voltage (V) 1.98|3.6
  • Maximum Operating Temperature (°C) 85
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 1.62|3
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Process Technology CMOS
  • Protocols Supported USB 2.0
  • Supplier Temperature Grade Industrial
  • Type USB to UART/MPSSE
  • Typical Operating Supply Voltage (V) 1.8|3.3
  • Typical Supply Current (mA) 70
  • USB Speed Type High Speed
  • USB Transceiver Yes

Więcej informacji

Do pobrania Download
Main description High Speed USB to UART/MPSSE USB 2.0 1.8V/3.3V T/R 56-Pin VQFN EP
