FM25CL64B-GTR
Do pobrania | Download |
---|---|

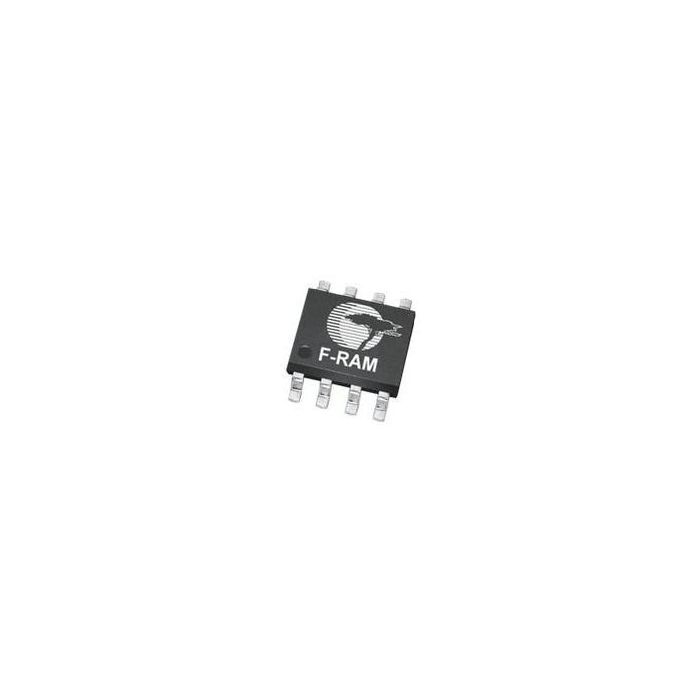

Main description | FRAM 64Kbit Serial-SPI Interface 3V/3.3V Automotive 8-Pin SOIC T/R |
FRAM 64Kbit Serial-SPI Interface 3V/3.3V Automotive 8-Pin SOIC T/R
Informacje podstawowe
- ProducentCypress Semiconductor
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 17
- Inventory 9
- PCNs 37
- GIDEP-Alerts 6
- FoundINBOMs 1
- MaskPart FM25CL64BG%
- IntroductionDate Feb 18, 2011
- SupplierUrl http://www.cypress.com/?app=search&searchType=part&keywords=FM25CL64B-GTR
Parametry
- Data Bus Width (bit) 8
- Density (bit) 64K
- Density Range (bit) 1K to 256K
- Density in Bits (bit) 65536
- Interface Type Serial-SPI
- Maximum Access Time (ns) 20
- Maximum Storage Temperature (°C) 125
- Minimum Storage Temperature (°C) -55
- Organization 8Kx8
- Package Family Name SOP
- Supplier Temperature Grade Industrial
