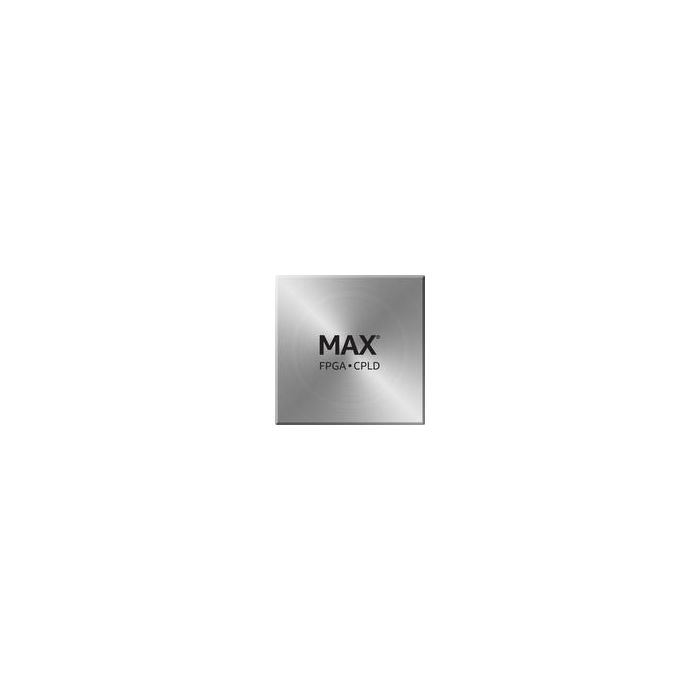

EPM7192SQC160-15N

ProducentAltera/Intel Programmable SolutionsEURoHSYes (2011/65/EU)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
EPM7192SQC160-15N_ALTERA_INTEL_PROGRAMMABLE_SOLUTIONS
0,00 zł

Zapytaj o ten produkt

Opis / EPM7192SQC160-15N

CPLD MAX® 7000 Family 3.75K Gates 192 Macro Cells 76.9MHz 5V 160-Pin PQFP

Informacje podstawowe

  • ProducentAltera/Intel Programmable Solutions
  • EURoHSYes (2011/65/EU)
  • Automotive No

Informacje dodatkowe

  • Crosses 133
  • Inventory 3
  • PCNs 21
  • MaskPart EPM7192SQC16015N%
  • IntroductionDate Oct 02, 1998
  • SupplierUrl http://www.altera.com/cgi-bin/devsearch.pl?col=corp&docsetConstraints=&qt=EPM7192SQC160-15N&scope=3

Parametry

  • Clock Management N/A
  • Copy Protection Yes
  • Data Gate No
  • Device Logic Cells N/A
  • Device System Gates 3750
  • Family Name MAX® 7000
  • I/O Voltage (V) 3.3|5
  • In-System Programmability Yes
  • Individual Output Enable Control Yes
  • Maximum Clock to Output Delay (ns) 8
  • Maximum Internal Frequency (MHz) 100
  • Maximum Operating Current (mA) N/A
  • Maximum Operating Frequency (MHz) 76.9
  • Maximum Operating Supply Voltage (V) 5.25
  • Maximum Operating Temperature (°C) 70
  • Maximum Propagation Delay Time (ns) 15
  • Maximum Storage Temperature (°C) 150
  • Memory Size (Kbit) N/A
  • Minimum Operating Supply Voltage (V) 4.75
  • Minimum Operating Temperature (°C) 0
  • Minimum Storage Temperature (°C) -65
  • Number of Flip Flops N/A
  • Number of Global Clocks 2
  • Number of I/O Banks N/A
  • Number of Inter Dielectric Layers N/A
  • Number of Logic Blocks/Elements 12
  • Number of Macro Cells 192
  • Number of Product Terms per Macro 32
  • Number of User I/Os 124
  • Process Technology N/A
  • Program Memory Type EEPROM
  • Programmability Yes
  • RAM Bits (Kbit) N/A
  • Reprogrammability Support Yes
  • Speed Grade 15
  • Supplier Temperature Grade Commercial
  • Temperature Flag Opr
  • Tolerant Configuration Interface Voltage (V) N/A
  • Tradename MAX
  • Typical Operating Supply Voltage (V) 5

Więcej informacji

Do pobrania Download
Main description CPLD MAX® 7000 Family 3.75K Gates 192 Macro Cells 76.9MHz 5V 160-Pin PQFP
