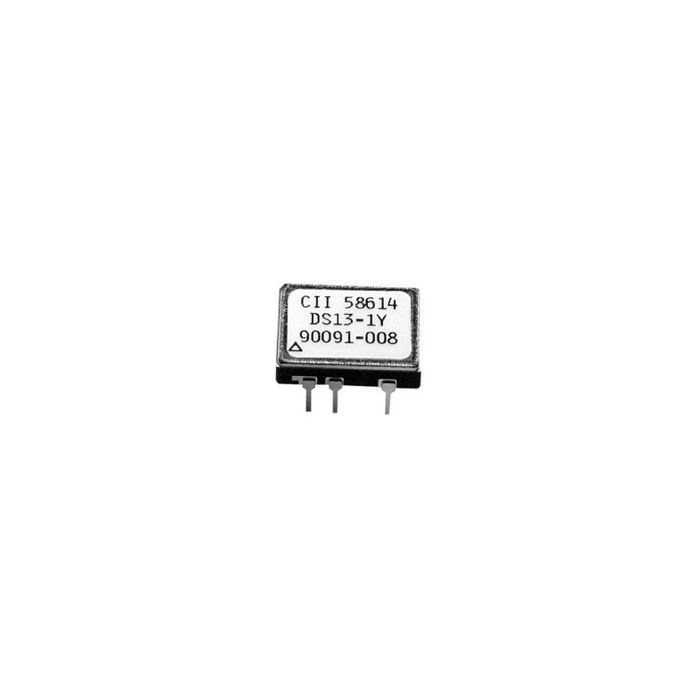

DS13-1Y

Więcej informacji
Do pobrania Download
Main description Solid State Relay 15mA 32V DC-IN 2A 60V DC-OUT 8-Pin CDIP Box/Tray
Solid State Relay 15mA 32V DC-IN 2A 60V DC-OUT 8-Pin CDIP Box/Tray

Informacje podstawowe

  • ProducentTE Connectivity
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • PCNs 42
  • GIDEP-Alerts 1
  • MaskPart DS131Y%
  • IntroductionDate Jan 16, 2004

Parametry

  • Circuit Arrangement N/A
  • I/O Isolation Voltage (V) 1000(RMS)
  • Input Type DC
  • Maximum Input Current (mA) 15
  • Maximum Input Voltage (V) 32
  • Maximum Off-State Leakage Current (uA) 100
  • Maximum Operating Temperature (°C) 105
  • Maximum Output Current (A) 2
  • Maximum Output Voltage (V) 60
  • Maximum Power Dissipation (mW) 1500
  • Maximum Storage Temperature (°C) 125
  • Maximum Turn-Off Time (ms) 0.25
  • Maximum Turn-On Time (ms) 1.5
  • Minimum Input Voltage (V) 3.8
  • Minimum Load Current (mA) 2(Max)
  • Minimum Operating Temperature (°C) -55
  • Minimum Storage Temperature (°C) -55
  • Output Device MOSFET
  • Output Type DC
  • Supplier Temperature Grade N/A
  • Typical Input to Output Capacitance (pF) 10
