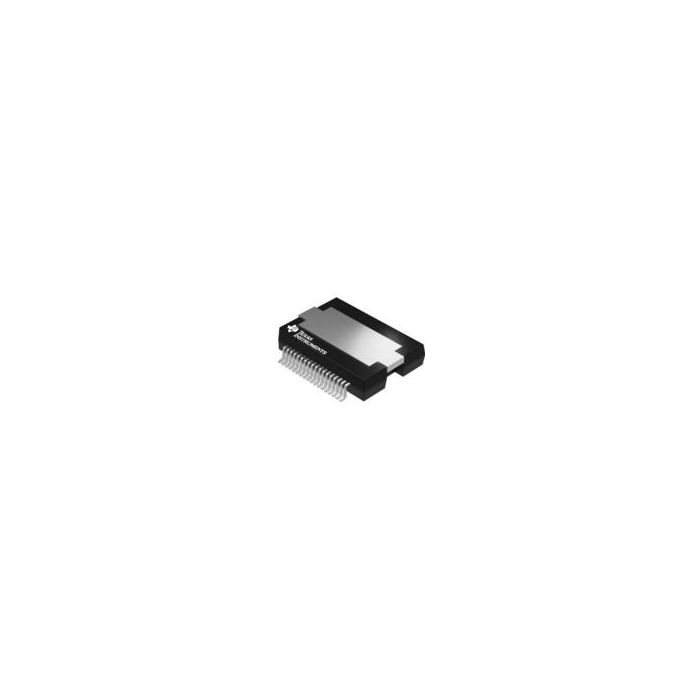

DRV8432DKD

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
DRV8432DKD_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / DRV8432DKD

Dual Full Bridge Motor Driver 50V 36-Pin HSSOP EP Tube

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 157
  • Inventory 2
  • PCNs 43
  • MaskPart DRV8432DKD%
  • IntroductionDate May 01, 2010

Parametry

  • Control Interface PWM
  • Maximum Operating Current (mA) 12
  • Maximum Operating Supply Voltage (V) 52.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (A) 14
  • Maximum Peak Output Current (A) 24
  • Maximum Power Dissipation (mW) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 0
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -55
  • Motor Type Stepper Motor
  • Number of Phases 3
  • Operating Supply Voltage (V) 50
  • Output Configuration Dual Full Bridge
  • Output Voltage (V) N/A
  • Shutdown Threshold (V) N/A
  • Supplier Temperature Grade Industrial
  • Type Motor Driver
  • Typical Operating Supply Voltage (V) 50

Więcej informacji

Do pobrania Download
Main description Dual Full Bridge Motor Driver 50V 36-Pin HSSOP EP Tube
