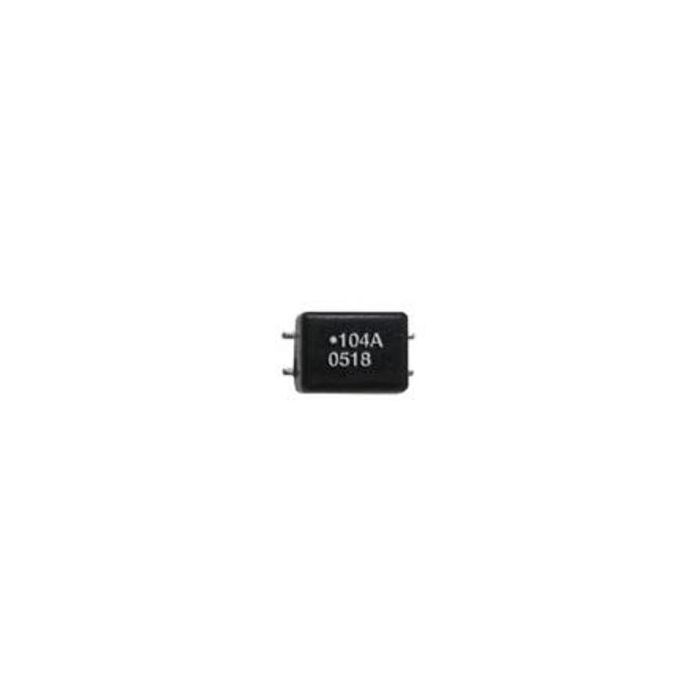

DR331-104AE

Więcej informacji
Do pobrania Download
Main description Common Mode Chokes Dual 100uH 100kHz 0.5A 0.1Ohm DCR SMD Automotive T/R
Common Mode Chokes Dual 100uH 100kHz 0.5A 0.1Ohm DCR SMD Automotive T/R

Informacje podstawowe

  • ProducentBourns
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 1
  • Inventory 5
  • PCNs 11
  • MaskPart DR331104AE%
  • IntroductionDate Aug 10, 2005

Parametry

  • Attenuation N/A
  • Configuration Dual
  • Impedance (Ohm) N/A
  • Inductance (H) 100u
  • Leakage Inductance (H) 850n
  • Maximum DC Current (A) 0.5
  • Maximum DC Resistance (Ohm) 0.1
  • Maximum Operating Temperature (°C) 135
  • Maximum Storage Temperature (°C) 135
  • Minimum Insulation Resistance (Ohm) N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -55
  • Number of Lines 2
  • Test Frequency (Hz) 100k
  • Type Data Line
  • Voltage Rating 42VAC|80VDC
  • Withstand Voltage 250VAC
