DP83848IVVX/NOPB

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
DP83848IVVX_NOPB_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / DP83848IVVX/NOPB

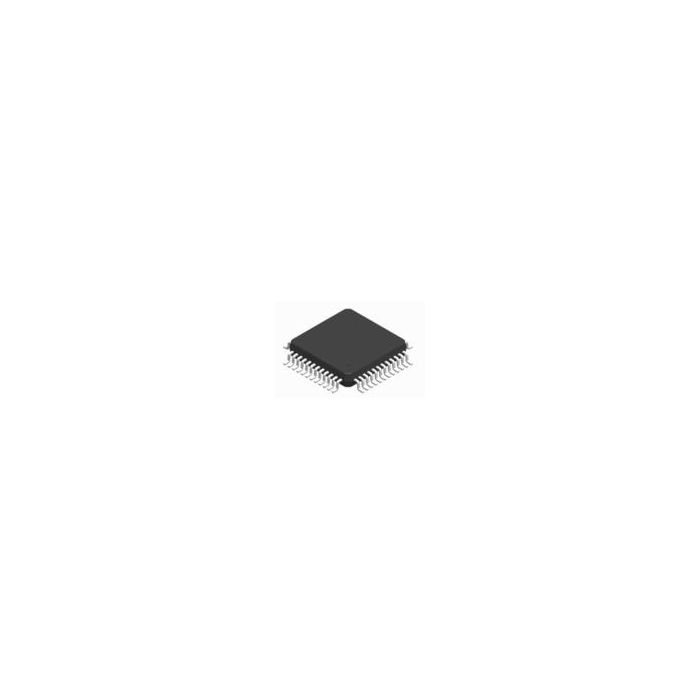

PHY 1-CH 10Mbps/100Mbps 3.3V Automotive 48-Pin LQFP T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 7537
  • Inventory 6
  • PCNs 41
  • MaskPart DP83848IVVXNOPB%
  • IntroductionDate Mar 02, 2005

Parametry

  • Ethernet Interface Type MII/RMII
  • Ethernet Speed 10Mbps/100Mbps
  • Integrated CDR No
  • JTAG Support Yes
  • Maximum Data Rate 100Mbps
  • Maximum Operating Supply Voltage (V) 3.6
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 267
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) 92(Typ)
  • Minimum Operating Supply Voltage (V) 3
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Channels per Chip 1
  • Operating Supply Voltage (V) 3.3
  • Optical Carrier Level N/A
  • Overhead Octet Support No
  • PHY Line Side Interface No
  • Power Supply Type Analog|Digital
  • Standard Supported 10BASE-T|100BASE-TX|IEEE 802.3
  • Supplier Temperature Grade Industrial
  • Type Fast Ethernet Transceiver
  • Typical Data Rate (Mbps) 10/100
  • Typical Operating Supply Voltage (V) 3.3
  • UTOPIA Level N/A

Więcej informacji

Do pobrania Download
Main description PHY 1-CH 10Mbps/100Mbps 3.3V Automotive 48-Pin LQFP T/R
