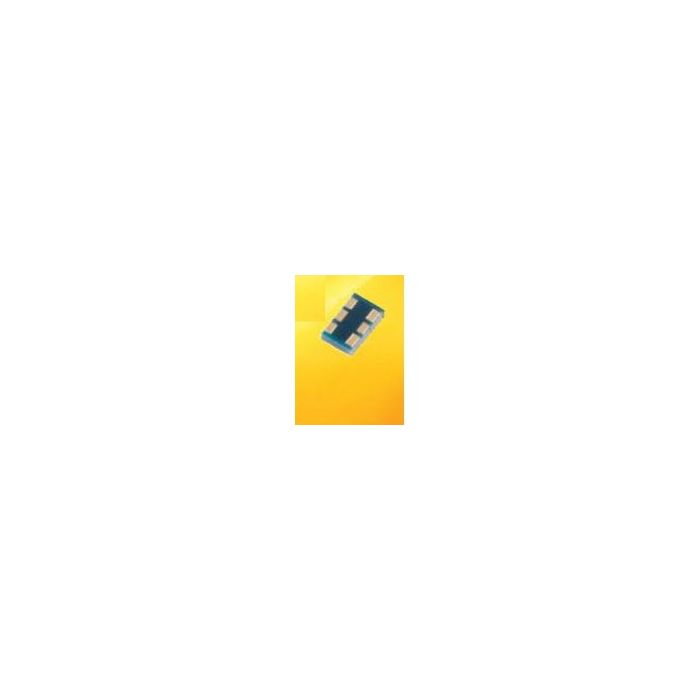

DP05B5425TTR

ProducentAVXEURoHSYes (2011/65/EU)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
DP05B5425TTR_AVX
0,00 zł

Zapytaj o ten produkt

Opis / DP05B5425TTR

RF Diplexer 2400MHz to 2500MHz/4900MHz to 5950MHz Automotive 6-Pin LGA T/R

Informacje podstawowe

  • ProducentAVX
  • EURoHSYes (2011/65/EU)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 2
  • Inventory 3
  • PCNs 4
  • MaskPart DP05B5425T%
  • IntroductionDate Feb 11, 2013

Parametry

  • Frequency Band (MHz) 2400 to 2500/4900 to 5950
  • Impedance (Ohm) N/A
  • Maximum High Band Insertion Loss (dB) -0.5(Typ)
  • Maximum Input Power N/A
  • Maximum Low Band Insertion Loss (dB) -0.8(Typ)
  • Maximum Operating Temperature (°C) 85
  • Maximum Storage Temperature (°C) N/A
  • Maximum VSWR 1.7(Typ)
  • Minimum High Band Attenuation (dB) -36(Typ)
  • Minimum High Band Return Loss (dB) N/A
  • Minimum Isolation (dB) N/A
  • Minimum Low Band Attenuation (dB) -26(Typ)
  • Minimum Low Band Return Loss (dB) N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) N/A
  • Number of Element per Chip N/A
  • Supplier Temperature Grade N/A
  • Type Diplexer

Więcej informacji

Do pobrania Download
Main description RF Diplexer 2400MHz to 2500MHz/4900MHz to 5950MHz Automotive 6-Pin LGA T/R
