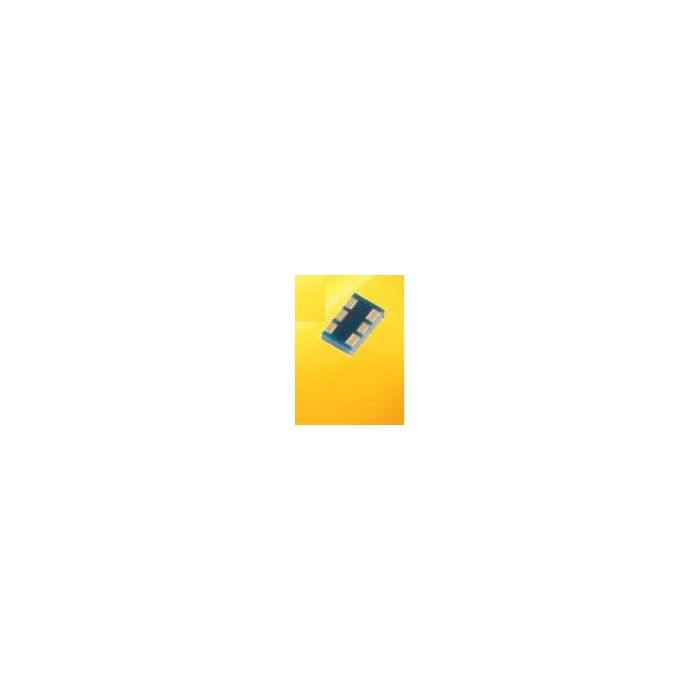

DP05A5250TTR

ProducentAVXEURoHSYes (2011/65/EU)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
DP05A5250TTR_AVX
0,00 zł

Zapytaj o ten produkt

Opis / DP05A5250TTR

RF Diplexer 2400MHz to 2500MHz/5150MHz to 5350MHz Automotive 6-Pin LGA T/R

Informacje podstawowe

  • ProducentAVX
  • EURoHSYes (2011/65/EU)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 1
  • Inventory 4
  • PCNs 4
  • MaskPart DP05A5250T%
  • IntroductionDate Feb 11, 2013

Parametry

  • Frequency Band (MHz) 2400 to 2500/5150 to 5350
  • Impedance (Ohm) N/A
  • Maximum High Band Insertion Loss (dB) -0.5(Typ)
  • Maximum Input Power N/A
  • Maximum Low Band Insertion Loss (dB) -0.5(Typ)
  • Maximum Operating Temperature (°C) 85
  • Maximum Storage Temperature (°C) N/A
  • Maximum VSWR N/A
  • Minimum High Band Attenuation (dB) -20(Typ)
  • Minimum High Band Return Loss (dB) -12(Typ)
  • Minimum Isolation (dB) -21(Typ)
  • Minimum Low Band Attenuation (dB) -20(Typ)
  • Minimum Low Band Return Loss (dB) -12(Typ)
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) N/A
  • Number of Element per Chip N/A
  • Supplier Temperature Grade N/A
  • Type Diplexer

Więcej informacji

Do pobrania Download
Main description RF Diplexer 2400MHz to 2500MHz/5150MHz to 5350MHz Automotive 6-Pin LGA T/R
