DG528CJ-2

ProducentMaxim IntegratedEURoHSNo (2011/65/EU)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
DG528CJ-2_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / DG528CJ-2

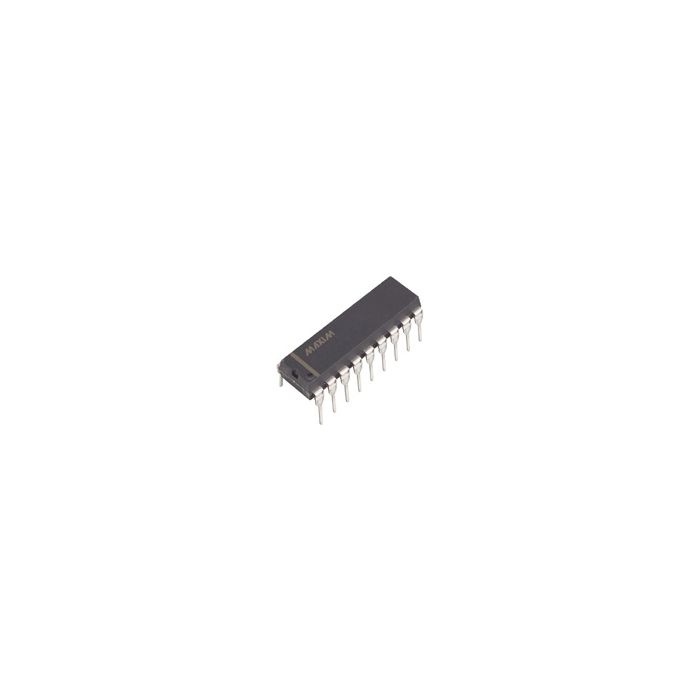

Analog Multiplexer Single 8:1 18-Pin PDIP N

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSNo (2011/65/EU)
  • Automotive No

Informacje dodatkowe

  • PCNs 7
  • MaskPart DG528CJ2%
  • IntroductionDate Mar 01, 1991

Parametry

  • Chip Enable Signals Yes
  • Configuration Single 8:1
  • Function General
  • Input Signal Type Single
  • Maximum Data Rate (Mbps) N/A
  • Maximum Dual Supply Voltage (V) ±20
  • Maximum Frequency (25°C) @ Vcc (MHz) N/A
  • Maximum High Level Output Current (mA) 20
  • Maximum Low Level Output Current (mA) N/A
  • Maximum On Resistance (Ohm) 450@±15V
  • Maximum On Resistance Range (Ohm) 400 to 1000
  • Maximum Propagation Delay Bus to Bus (ns) 200(Typ)@±15V
  • Maximum Single Supply Voltage (V) 30
  • Maximum Supply Current (mA) 2.5@±15V
  • Maximum Turn-Off Time (ns) 1500@±15V
  • Maximum Turn-On Time (ns) 1500@±15V
  • Minimum Dual Supply Voltage (V) ±4.5
  • Minimum Single Supply Voltage (V) 5
  • Multiplexer Architecture 8:1
  • Number of Channels per Chip 1
  • Number of Inputs per Chip 8
  • Number of Outputs per Chip 1
  • Output Signal Type Single
  • Polarity Non-Inverting
  • Power Supply Type Single|Dual
  • Propagation Delay Test Condition (pF) N/A
  • Special Features Break-Before-Make
  • Switch Architecture N/R
  • Switch Control Logic N/R
  • Switch Normal Position N/R
  • Type Analog Multiplexer
  • Typical Supply Current (mA) 0.003@15V/-0.01@-15V

Więcej informacji

Do pobrania Download
Main description Analog Multiplexer Single 8:1 18-Pin PDIP N
