DG509ACWE+T
ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
- SKU
- DG509ACWE+T_MAXIM_INTEGRATED
0,00 zł
Opis / DG509ACWE+T

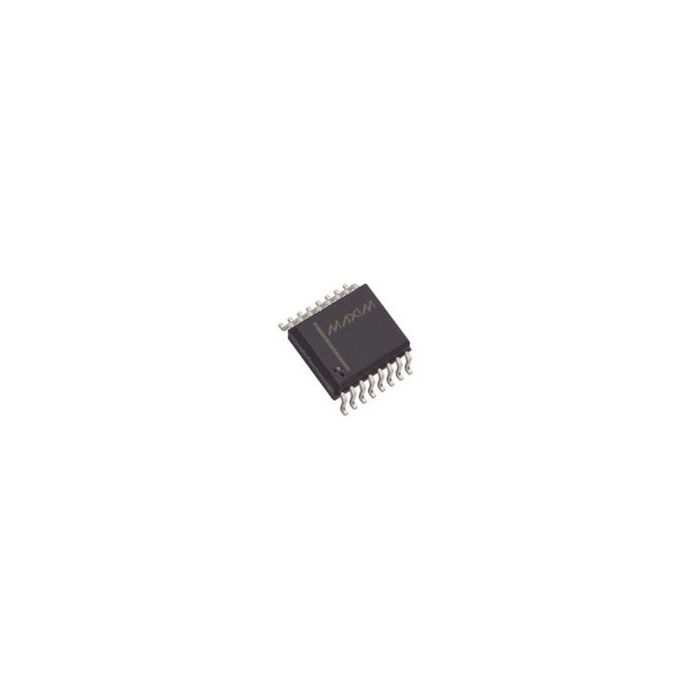

Analog Multiplexer Single 4:1 16-Pin SOIC W T/R
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 62
- Inventory 1
- PCNs 9
- GIDEP-Alerts 1
- MaskPart DG509ACWE+%
- IntroductionDate Feb 01, 1996
Parametry
- Chip Enable Signals Yes
- Configuration Single 4:1
- Function General
- Input Signal Type Differential
- Logic Family N/A
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) ±18
- Maximum Frequency (25°C) @ Vcc (MHz) N/A
- Maximum High Level Output Current (mA) 20
- Maximum Low Level Output Current (mA) N/A
- Maximum On Resistance (Ohm) 550@15V
- Maximum On Resistance Range (Ohm) 400 to 1000
- Maximum Power Dissipation (mW) 762
- Maximum Propagation Delay Bus to Bus (ns) 1000@±15V
- Maximum Single Supply Voltage (V) N/A
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) 0.2@15V/-0.1@-15V
- Maximum Turn-Off Time (ns) 1000@±15V
- Maximum Turn-On Time (ns) 1500@±15V
- Minimum Dual Supply Voltage (V) ±4.5
- Minimum Single Supply Voltage (V) N/A
- Minimum Storage Temperature (°C) -65
- Multiplexer Architecture 4:1
- Number of Channels per Chip 1
- Number of Inputs per Chip 8
- Number of Outputs per Chip 2
- Output Signal Type Differential
- Polarity Non-Inverting
- Power Supply Type Single|Dual
- Propagation Delay Test Condition (pF) N/A
- Special Features Break-Before-Make
- Supplier Temperature Grade Commercial
- Switch Architecture N/R
- Switch Control Logic N/R
- Switch Normal Position N/R
- Type Analog Multiplexer
- Typical Dual Supply Voltage (V) ±5|±9|±12|±15
- Typical Single Supply Voltage (V) 15
- Typical Supply Current (mA) 0.02@15V/-0.01@-15V
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | Analog Multiplexer Single 4:1 16-Pin SOIC W T/R |
