DG417CY+T
ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
- SKU
- DG417CY+T_MAXIM_INTEGRATED
0,00 zł
Opis / DG417CY+T

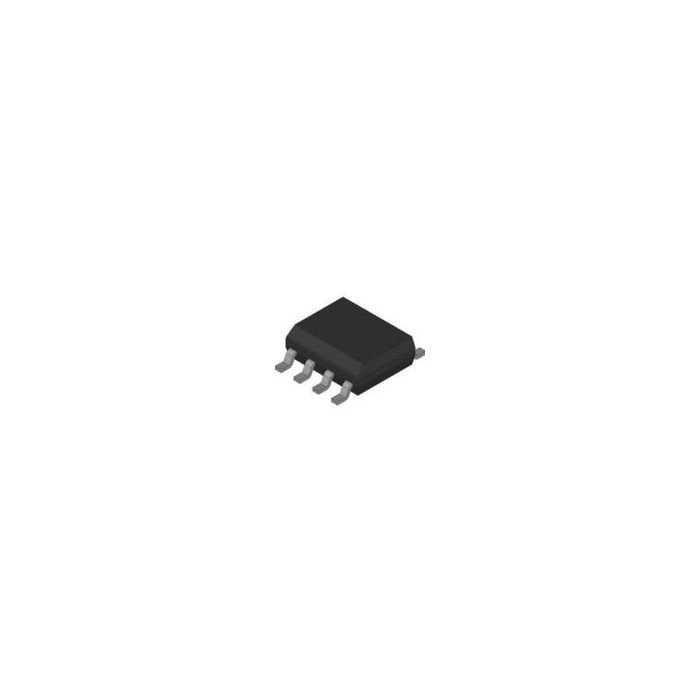

Analog Switch Single SPST 8-Pin SOIC N T/R
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 33
- Inventory 1
- PCNs 8
- MaskPart DG417CY+%
- IntroductionDate Dec 01, 1996
Parametry
- Chip Enable Signals Yes
- Configuration Single SPST
- Function General
- Input Signal Type Single
- Logic Family N/A
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) ±20
- Maximum Frequency (25°C) @ Vcc (MHz) N/A
- Maximum High Level Output Current (mA) 30
- Maximum Low Level Output Current (mA) N/A
- Maximum On Resistance (Ohm) 100@10.8V
- Maximum On Resistance Range (Ohm) 100 to 150
- Maximum Power Dissipation (mW) 471
- Maximum Propagation Delay Bus to Bus (ns) N/A
- Maximum Single Supply Voltage (V) 30
- Maximum Supply Current (mA) ±0.001@±16.5V
- Maximum Turn-Off Time (ns) 145@±15V
- Maximum Turn-On Time (ns) 175@±15V
- Minimum Dual Supply Voltage (V) ±4.5
- Minimum Single Supply Voltage (V) 10
- Multiplexer Architecture N/R
- Number of Channels per Chip 1
- Number of Inputs per Chip 1
- Number of Outputs per Chip 1
- Output Signal Type Single
- Polarity Non-Inverting
- Power Supply Type Single|Dual
- Propagation Delay Test Condition (pF) N/A
- Special Features N/A
- Supplier Temperature Grade Commercial
- Switch Architecture SPST
- Switch Control Logic Active Low
- Switch Normal Position NC
- Type Analog Switch
- Typical Dual Supply Voltage (V) ±5|±9|±12|±15|±18
- Typical Single Supply Voltage (V) 12|15|18|24|28
- Typical Supply Current (mA) ±0.0000001@±16.5V
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | Analog Switch Single SPST 8-Pin SOIC N T/R |
