DG411DY-E3

ProducentVishayEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
DG411DY-E3_VISHAY
0,00 zł

Zapytaj o ten produkt

Opis / DG411DY-E3

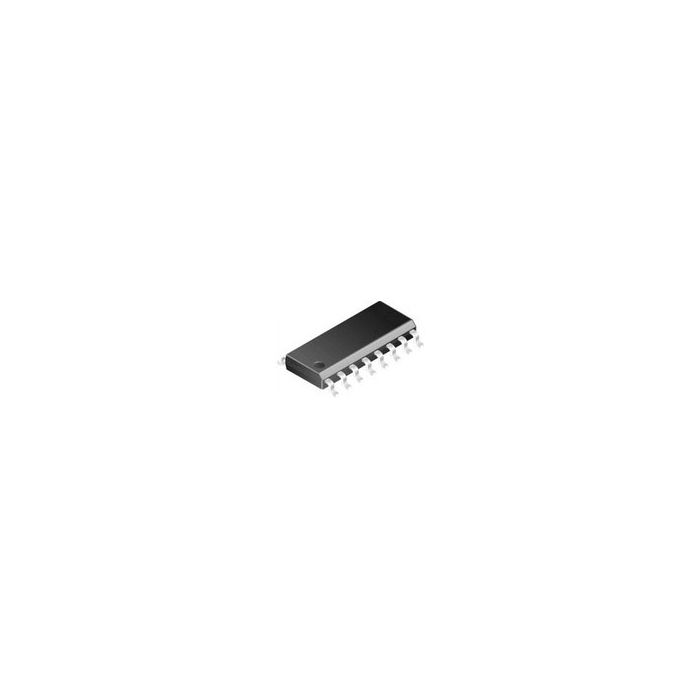

Analog Switch Quad SPST 16-Pin SOIC N

Informacje podstawowe

  • ProducentVishay
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 171
  • Inventory 9
  • PCNs 33
  • GIDEP-Alerts 2
  • MaskPart DG411DY%E3
  • IntroductionDate Jul 28, 1997

Parametry

  • Chip Enable Signals Yes
  • Configuration Quad SPST
  • Function General
  • Input Signal Type Single
  • Logic Family N/A
  • Maximum Data Rate (Mbps) N/A
  • Maximum Dual Supply Voltage (V) ±22
  • Maximum Frequency (25°C) @ Vcc (MHz) N/A
  • Maximum High Level Output Current (mA) 30
  • Maximum Low Level Output Current (mA) N/A
  • Maximum On Resistance (Ohm) 80@10.8V
  • Maximum On Resistance Range (Ohm) 80 to 100
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 600
  • Maximum Propagation Delay Bus to Bus (ns) N/A
  • Maximum Single Supply Voltage (V) 36
  • Maximum Supply Current (mA) ±0.001@±16.5V
  • Maximum Turn-Off Time (ns) 145@±15V
  • Maximum Turn-On Time (ns) 250@12V
  • Minimum Dual Supply Voltage (V) ±7
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 13
  • Multiplexer Architecture N/R
  • Number of Channels per Chip 4
  • Number of Inputs per Chip 4
  • Number of Outputs per Chip 4
  • Output Signal Type Single
  • Polarity Non-Inverting
  • Power Supply Type Single|Dual
  • Propagation Delay Test Condition (pF) N/A
  • Special Features Level Shifting
  • Supplier Temperature Grade N/A
  • Switch Architecture SPST
  • Switch Control Logic Active Low
  • Switch Normal Position NC
  • Type Analog Switch
  • Typical Dual Supply Voltage (V) ±9|±12|±15|±18
  • Typical Single Supply Voltage (V) 15|18|24|28
  • Typical Supply Current (mA) ±0.0000001@±16.5V

Więcej informacji

Do pobrania Download
Main description Analog Switch Quad SPST 16-Pin SOIC N
