DG409DY-T1-E3
ProducentVishayEURoHSYes (2011/65/EU, 2015/863)Automotive No.
- SKU
- DG409DY-T1-E3_VISHAY
0,00 zł
Opis / DG409DY-T1-E3

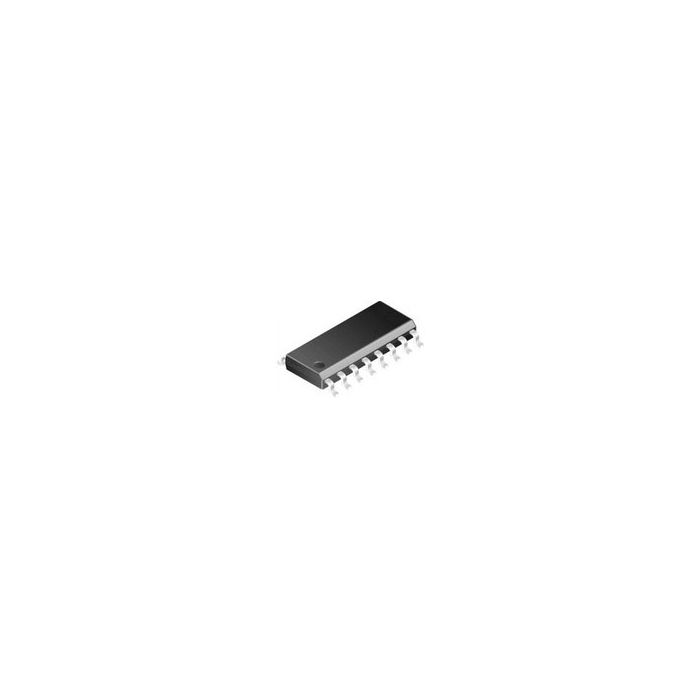

Analog Multiplexer Dual 4:1 16-Pin SOIC N T/R
Informacje podstawowe
- ProducentVishay
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 127
- Inventory 8
- PCNs 31
- GIDEP-Alerts 2
- MaskPart DG409DY%E3
- IntroductionDate Jun 17, 2007
Parametry
- Chip Enable Signals Yes
- Configuration Dual 4:1
- Function General
- Input Signal Type Single
- Logic Family N/A
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) ±20
- Maximum Frequency (25°C) @ Vcc (MHz) N/A
- Maximum High Level Output Current (mA) 30
- Maximum Low Level Output Current (mA) N/A
- Maximum On Resistance (Ohm) 100@±15V
- Maximum On Resistance Range (Ohm) 100 to 150
- Maximum Power Dissipation (mW) 600
- Maximum Propagation Delay Bus to Bus (ns) 250@±15V@-40C to 85C|180(Typ)@12V
- Maximum Single Supply Voltage (V) 36
- Maximum Storage Temperature (°C) 125
- Maximum Supply Current (mA) -0.5@-15V@-40C to 85C/0.5@15V
- Maximum Turn-Off Time (ns) 150@±15V
- Maximum Turn-On Time (ns) 180(Typ)@12V
- Minimum Dual Supply Voltage (V) ±5
- Minimum Single Supply Voltage (V) 5
- Minimum Storage Temperature (°C) -65
- Multiplexer Architecture 4:1
- Number of Channels per Chip 2
- Number of Inputs per Chip 8
- Number of Outputs per Chip 2
- Output Signal Type Single
- Polarity N/A
- Power Supply Type Single|Dual
- Propagation Delay Test Condition (pF) N/A
- Special Features Break-Before-Make|Level Shifting
- Supplier Temperature Grade N/A
- Switch Architecture N/R
- Switch Control Logic N/R
- Switch Normal Position N/R
- Type Analog Multiplexer
- Typical Dual Supply Voltage (V) ±9|±12|±15|±18
- Typical Single Supply Voltage (V) 9|12|15|18|24|28
- Typical Supply Current (mA) -0.001@-15V@-40C to 85C/0.2@15V
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | Analog Multiplexer Dual 4:1 16-Pin SOIC N T/R |
