DG403DJ-E3
ProducentVishayEURoHSYes (2011/65/EU, 2015/863)Automotive No.
- SKU
- DG403DJ-E3_VISHAY
0,00 zł
Opis / DG403DJ-E3

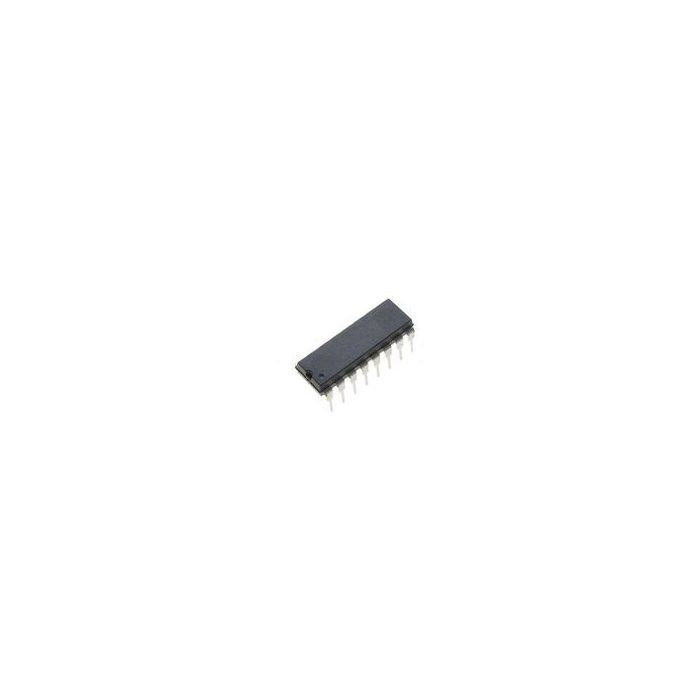

Analog Switch Dual SPDT 16-Pin PDIP
Informacje podstawowe
- ProducentVishay
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 67
- Inventory 9
- PCNs 30
- GIDEP-Alerts 1
- MaskPart DG403DJE3%
- IntroductionDate Jun 17, 2007
Parametry
- Chip Enable Signals Yes
- Configuration Dual SPDT
- Function General
- Input Signal Type Single
- Logic Family N/A
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) ±22
- Maximum Frequency (25°C) @ Vcc (MHz) N/A
- Maximum High Level Output Current (mA) 100
- Maximum Low Level Output Current (mA) N/A
- Maximum On Resistance (Ohm) 55@±13.5V
- Maximum On Resistance Range (Ohm) 45 to 60
- Maximum Power Dissipation (mW) 450
- Maximum Propagation Delay Bus to Bus (ns) N/A
- Maximum Single Supply Voltage (V) 36
- Maximum Supply Current (mA) ±0.001@±16.5V
- Maximum Turn-Off Time (ns) 100@±15V
- Maximum Turn-On Time (ns) 150@±15V
- Minimum Dual Supply Voltage (V) ±7
- Minimum Single Supply Voltage (V) 13
- Multiplexer Architecture N/R
- Number of Channels per Chip 2
- Number of Inputs per Chip 4
- Number of Outputs per Chip 4
- Output Signal Type Single
- Polarity Non-Inverting
- Power Supply Type Single|Dual
- Propagation Delay Test Condition (pF) N/A
- Special Features Break-Before-Make|Level Shifting
- Supplier Temperature Grade N/A
- Switch Architecture SPDT
- Switch Control Logic Active Low/High
- Switch Normal Position NO/NC
- Type Analog Switch
- Typical Dual Supply Voltage (V) ±9|±12|±15|±18
- Typical Single Supply Voltage (V) 15|18|24|28
- Typical Supply Current (mA) ±0.00001@±16.5V
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | Analog Switch Dual SPDT 16-Pin PDIP |
