DG384BWE
| Do pobrania | Download |
|---|---|
| Main description | Analog Switch Dual DPST 16-Pin SOIC W |

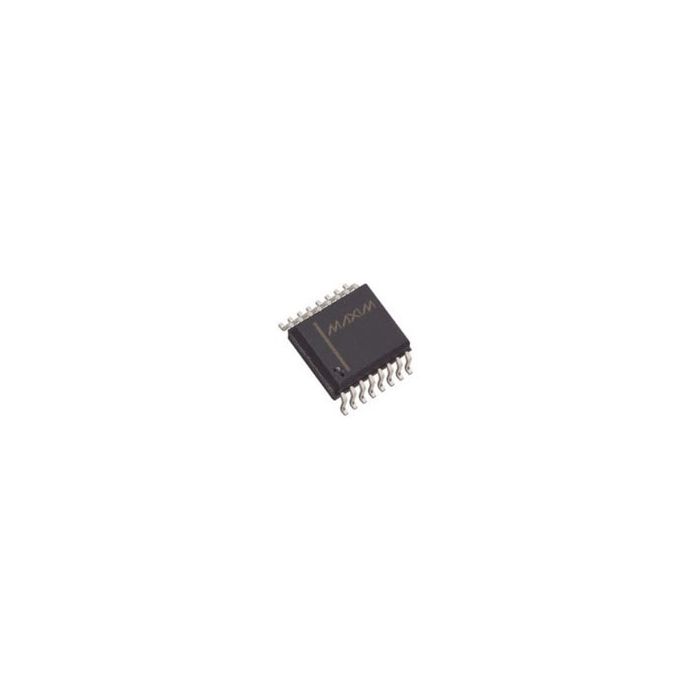

Analog Switch Dual DPST 16-Pin SOIC W
Informacje podstawowe
- ProducentMaxim Integrated
- Automotive No
Informacje dodatkowe
- Crosses 6
- PCNs 7
- MaskPart DG384BWE%
- IntroductionDate Feb 05, 1996
Parametry
- Chip Enable Signals Yes
- Configuration Dual DPST
- Function General
- Input Signal Type Single
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) ±18
- Maximum Frequency (25°C) @ Vcc (MHz) N/A
- Maximum High Level Output Current (mA) 30
- Maximum Low Level Output Current (mA) N/A
- Maximum On Resistance (Ohm) 50@±15V
- Maximum On Resistance Range (Ohm) 45 to 60
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Bus to Bus (ns) N/A
- Maximum Single Supply Voltage (V) N/R
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) 0.5@15V/-0.01@-15V
- Maximum Turn-Off Time (ns) 250@±15V
- Maximum Turn-On Time (ns) 300@±15V
- Minimum Dual Supply Voltage (V) ±5
- Minimum Single Supply Voltage (V) N/R
- Minimum Storage Temperature (°C) -65
- Multiplexer Architecture N/R
- Number of Channels per Chip 2
- Number of Inputs per Chip 4
- Number of Outputs per Chip 4
- Output Signal Type Single
- Polarity Non-Inverting
- Power Supply Type Dual
- Propagation Delay Test Condition (pF) N/A
- Special Features N/A
- Supplier Temperature Grade N/A
- Switch Architecture DPST
- Switch Control Logic Active High
- Switch Normal Position NO
- Type Analog Switch
- Typical Dual Supply Voltage (V) ±9|±12|±15
- Typical Single Supply Voltage (V) N/R
- Typical Supply Current (mA) 0.23@15V/-0.000001@-15V
