DG301CJ
ProducentMaxim IntegratedEURoHSNo (2011/65/EU)Automotive No.
- SKU
- DG301CJ_MAXIM_INTEGRATED
0,00 zł
Opis / DG301CJ

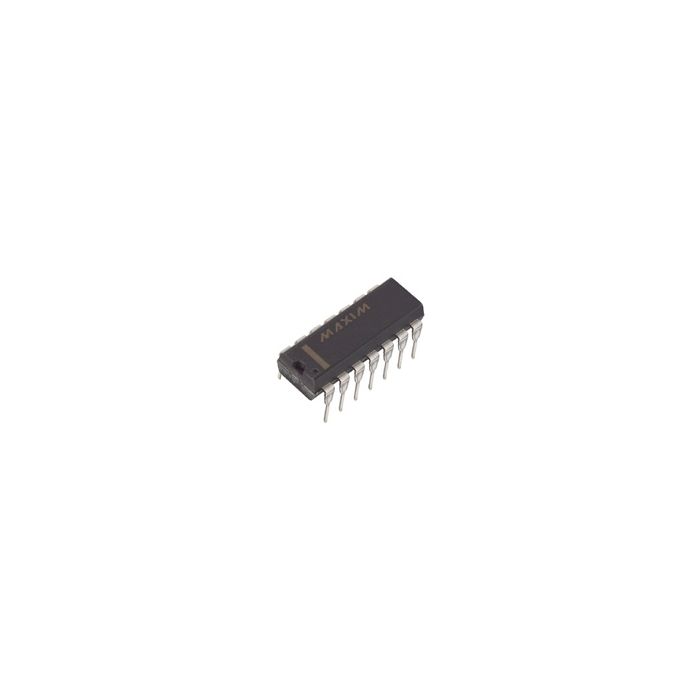

Analog Switch Single SPDT 14-Pin PDIP N
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSNo (2011/65/EU)
- Automotive No
Informacje dodatkowe
- Crosses 10
- Inventory 3*
- PCNs 7
- MaskPart DG301CJ%
- IntroductionDate Dec 13, 1996
Parametry
- Chip Enable Signals Yes
- Configuration Single SPDT
- Function General
- Input Signal Type Single
- Logic Family N/A
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) ±18
- Maximum Frequency (25°C) @ Vcc (MHz) N/A
- Maximum High Level Output Current (mA) 30
- Maximum Low Level Output Current (mA) N/A
- Maximum On Resistance (Ohm) 50@±15V
- Maximum On Resistance Range (Ohm) 45 to 60
- Maximum Power Dissipation (mW) 470
- Maximum Propagation Delay Bus to Bus (ns) N/A
- Maximum Single Supply Voltage (V) 25
- Maximum Storage Temperature (°C) 125
- Maximum Supply Current (mA) 0.5@15V/-0.01@-15V
- Maximum Turn-Off Time (ns) 250@±15V
- Maximum Turn-On Time (ns) 300@±15V
- Minimum Dual Supply Voltage (V) ±5
- Minimum Single Supply Voltage (V) N/A
- Minimum Storage Temperature (°C) -65
- Multiplexer Architecture N/R
- Number of Channels per Chip 1
- Number of Inputs per Chip 2
- Number of Outputs per Chip 2
- Output Signal Type Single
- Polarity Non-Inverting
- Power Supply Type Single|Dual
- Propagation Delay Test Condition (pF) N/A
- Special Features N/A
- Supplier Temperature Grade Commercial
- Switch Architecture SPDT
- Switch Control Logic Active Low/High
- Switch Normal Position NO/NC
- Type Analog Switch
- Typical Dual Supply Voltage (V) ±9|±12|±15
- Typical Single Supply Voltage (V) N/A
- Typical Supply Current (mA) 0.23@15V/-0.000001@-15V
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | Analog Switch Single SPDT 14-Pin PDIP N |
