DG212DY+T
| Do pobrania | Download |
|---|---|
| Main description | Analog Switch Quad SPST 16-Pin SOIC N T/R |

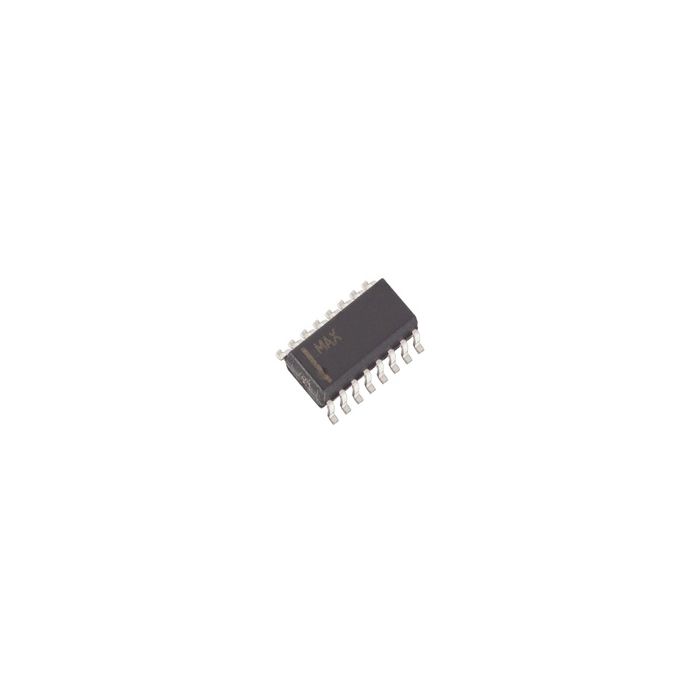

Analog Switch Quad SPST 16-Pin SOIC N T/R
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 10
- Inventory 3*
- PCNs 7
- MaskPart DG212DY+%
- IntroductionDate Jan 02, 1996
Parametry
- Chip Enable Signals Yes
- Configuration Quad SPST
- Function General
- Input Signal Type Single
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) ±18
- Maximum Frequency (25°C) @ Vcc (MHz) N/A
- Maximum High Level Output Current (mA) 20
- Maximum Low Level Output Current (mA) N/A
- Maximum On Resistance (Ohm) 175@±15V
- Maximum On Resistance Range (Ohm) 150 to 250
- Maximum Power Dissipation (mW) 696
- Maximum Propagation Delay Bus to Bus (ns) N/A
- Maximum Single Supply Voltage (V) N/R
- Maximum Supply Current (mA) ±0.4@±15V
- Maximum Turn-Off Time (ns) 500@±15V
- Maximum Turn-On Time (ns) 1000@±15V
- Minimum Dual Supply Voltage (V) ±4.5
- Minimum Single Supply Voltage (V) N/R
- Multiplexer Architecture N/R
- Number of Channels per Chip 4
- Number of Inputs per Chip 4
- Number of Outputs per Chip 4
- Output Signal Type Single
- Polarity Non-Inverting
- Power Supply Type Dual
- Propagation Delay Test Condition (pF) N/A
- Special Features Break-Before-Make|Fault Protected
- Supplier Temperature Grade Extended
- Switch Architecture SPST
- Switch Control Logic Active High
- Switch Normal Position NO
- Type Analog Switch
- Typical Dual Supply Voltage (V) ±5|±9|±12|±15
- Typical Single Supply Voltage (V) N/R
- Typical Supply Current (mA) 0.02@15V/-0.01@-15V
