DG211BDY-E3
| Do pobrania | Download |
|---|---|
| Main description | Analog Switch Quad SPST 16-Pin SOIC N |

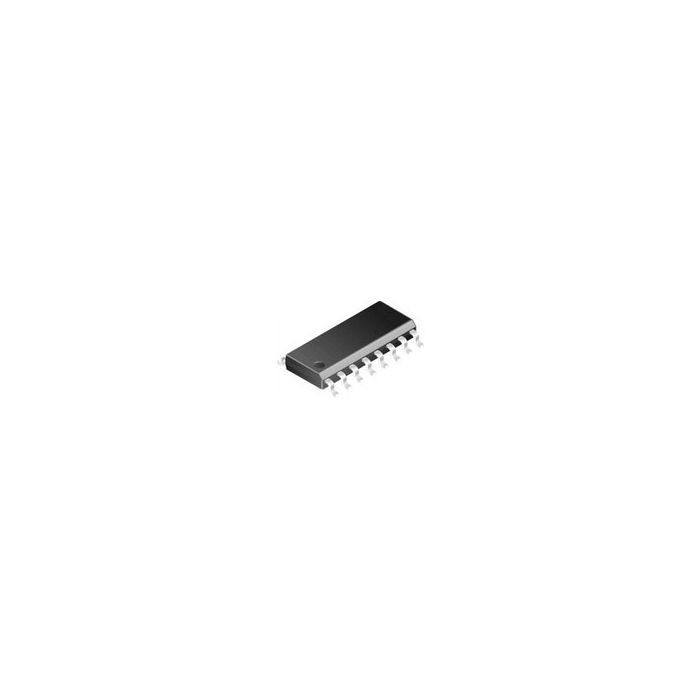

Analog Switch Quad SPST 16-Pin SOIC N
Informacje podstawowe
- ProducentVishay
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 143
- Inventory 10
- PCNs 33
- GIDEP-Alerts 2
- MaskPart DG211BDY%E3
- IntroductionDate Jan 05, 1990
Parametry
- Chip Enable Signals Yes
- Configuration Quad SPST
- Function General
- Input Signal Type Single
- Logic Family N/A
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) ±22
- Maximum Frequency (25°C) @ Vcc (MHz) N/A
- Maximum High Level Output Current (mA) 100
- Maximum Low Level Output Current (mA) N/A
- Maximum On Resistance (Ohm) 160@12V
- Maximum On Resistance Range (Ohm) 150 to 250
- Maximum Power Dissipation (mW) 640
- Maximum Propagation Delay Bus to Bus (ns) N/A
- Maximum Single Supply Voltage (V) 25
- Maximum Supply Current (mA) ±0.01@±15V
- Maximum Turn-Off Time (ns) 200@±15V
- Maximum Turn-On Time (ns) 300@±15V
- Minimum Dual Supply Voltage (V) ±4.5
- Minimum Single Supply Voltage (V) 4.5
- Multiplexer Architecture N/R
- Number of Channels per Chip 4
- Number of Inputs per Chip 4
- Number of Outputs per Chip 4
- Output Signal Type Single
- Polarity Non-Inverting
- Power Supply Type Single|Dual
- Propagation Delay Test Condition (pF) N/A
- Special Features Level Shifting
- Supplier Temperature Grade Extended
- Switch Architecture SPST
- Switch Control Logic Active Low
- Switch Normal Position NC
- Type Analog Switch
- Typical Dual Supply Voltage (V) ±5|±9|±12|±15|±18
- Typical Single Supply Voltage (V) 5|9|12|15|18|24
- Typical Supply Current (mA) N/A
