DG202ADJ

ProducentMaxim IntegratedEURoHSNo (2011/65/EU)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
DG202ADJ_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / DG202ADJ

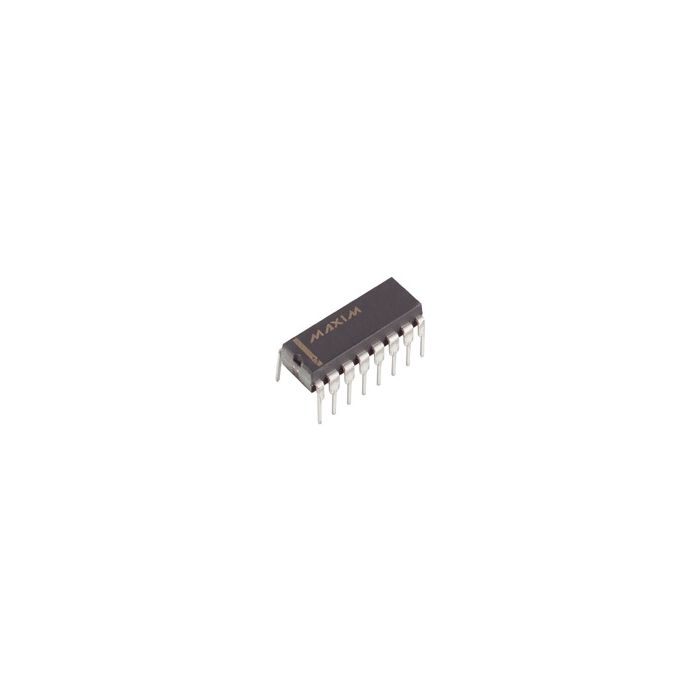

Analog Switch Quad SPST 16-Pin PDIP N

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSNo (2011/65/EU)
  • Automotive No

Informacje dodatkowe

  • Crosses 4
  • PCNs 7
  • MaskPart DG202ADJ%
  • IntroductionDate Jan 02, 1996

Parametry

  • Chip Enable Signals Yes
  • Configuration Quad SPST
  • Function General
  • Input Signal Type Single
  • Maximum Data Rate (Mbps) N/A
  • Maximum Dual Supply Voltage (V) ±18
  • Maximum Frequency (25°C) @ Vcc (MHz) N/A
  • Maximum High Level Output Current (mA) 20
  • Maximum Low Level Output Current (mA) N/A
  • Maximum On Resistance (Ohm) 175@±15V
  • Maximum On Resistance Range (Ohm) 150 to 250
  • Maximum Operating Temperature (°C) 150
  • Maximum Power Dissipation (mW) 842
  • Maximum Propagation Delay Bus to Bus (ns) N/A
  • Maximum Single Supply Voltage (V) 25
  • Maximum Supply Current (mA) ±0.1@±15V
  • Maximum Turn-Off Time (ns) 450@±15V
  • Maximum Turn-On Time (ns) 600@±15V
  • Minimum Dual Supply Voltage (V) ±4.5
  • Minimum Operating Temperature (°C) -65
  • Minimum Single Supply Voltage (V) N/A
  • Multiplexer Architecture N/R
  • Number of Channels per Chip 4
  • Number of Inputs per Chip 4
  • Number of Outputs per Chip 4
  • Output Signal Type Single
  • Polarity Non-Inverting
  • Power Supply Type Single|Dual
  • Propagation Delay Test Condition (pF) N/A
  • Special Features Break-Before-Make|Fault Protected
  • Supplier Temperature Grade N/A
  • Switch Architecture SPST
  • Switch Control Logic Active High
  • Switch Normal Position NO
  • Type Analog Switch
  • Typical Dual Supply Voltage (V) ±5|±9|±12|±15
  • Typical Single Supply Voltage (V) N/A
  • Typical Supply Current (mA) 0.02@15V/-0.01@-15V

Więcej informacji

Do pobrania Download
Main description Analog Switch Quad SPST 16-Pin PDIP N
