DG200AAKE3
| Do pobrania | Download |
|---|---|
| Main description | Analog Switch Dual SPST 14-Pin CDIP |

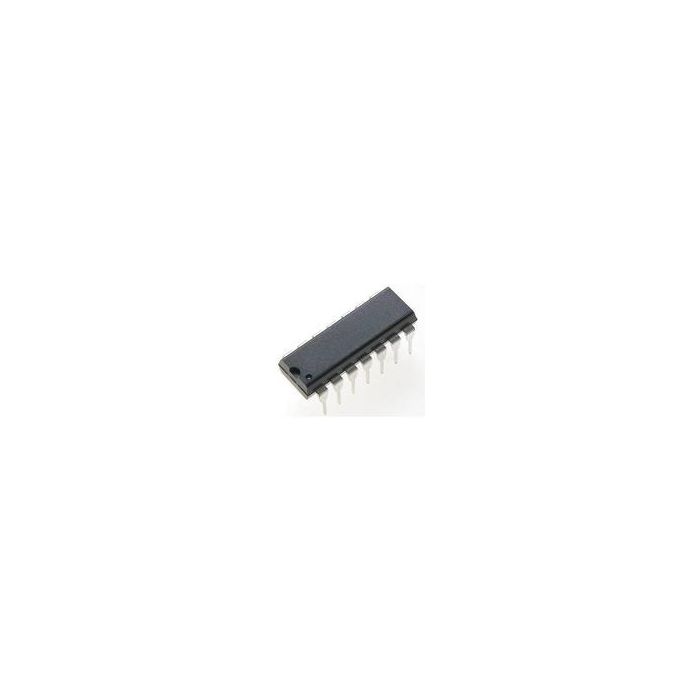

Analog Switch Dual SPST 14-Pin CDIP
Informacje podstawowe
- ProducentVishay
- EURoHSYes (2002/95/EC)
- Automotive No
Informacje dodatkowe
- Crosses 55
- PCNs 22
- MaskPart DG200AAKE3%
- IntroductionDate Oct 05, 2000
Parametry
- Chip Enable Signals Yes
- Configuration Dual SPST
- Function General
- Input Signal Type Single
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) ±22
- Maximum Frequency (25°C) @ Vcc (MHz) N/A
- Maximum High Level Output Current (mA) 100
- Maximum Low Level Output Current (mA) N/A
- Maximum On Resistance (Ohm) 70@±15V
- Maximum On Resistance Range (Ohm) 60 to 80
- Maximum Power Dissipation (mW) 825
- Maximum Propagation Delay Bus to Bus (ns) N/A
- Maximum Single Supply Voltage (V) 36
- Maximum Supply Current (mA) 2@15V/-1@-15V
- Maximum Turn-Off Time (ns) 425@±15V
- Maximum Turn-On Time (ns) 1000@±15V
- Minimum Dual Supply Voltage (V) ±7
- Minimum Single Supply Voltage (V) 13
- Multiplexer Architecture N/R
- Number of Channels per Chip 2
- Number of Inputs per Chip 2
- Number of Outputs per Chip 2
- Output Signal Type Single
- Polarity Non-Inverting
- Power Supply Type Single|Dual
- Propagation Delay Test Condition (pF) N/A
- Special Features N/A
- Supplier Temperature Grade N/A
- Switch Architecture SPST
- Switch Control Logic Active Low
- Switch Normal Position NC
- Type Analog Switch
- Typical Dual Supply Voltage (V) ±9|±12|±15|±18
- Typical Single Supply Voltage (V) 15|18|24|28
- Typical Supply Current (mA) 0.8@15V/-0.23@-15V
