CY8C4125LQI-483

Powiadom mnie gdy produkt będzie dostępny

Więcej informacji
Do pobrania	Download

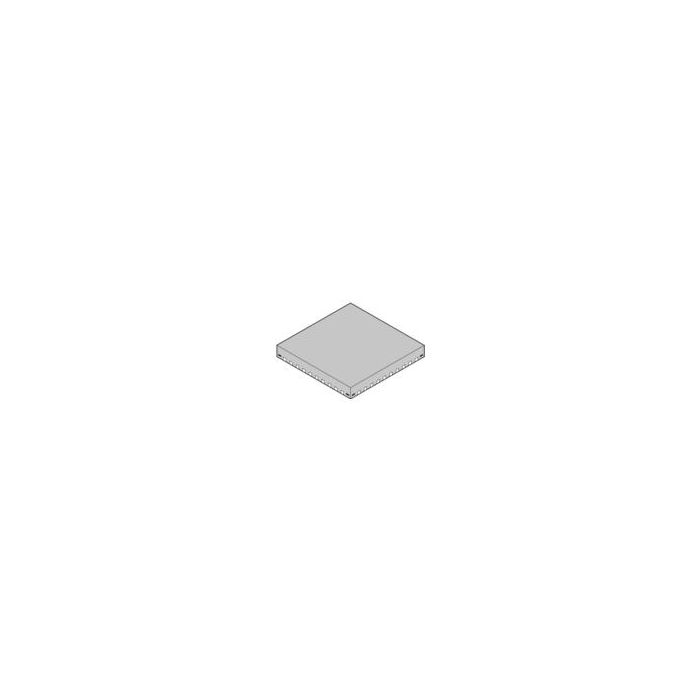

Main description	MCU 32-bit ARM Cortex M0 RISC 32KB Flash 3V/5V 40-Pin QFN EP Tray

PARAMETRY PRODUKTU

MCU 32-bit ARM Cortex M0 RISC 32KB Flash 3V/5V 40-Pin QFN EP Tray

Informacje podstawowe

ProducentCypress Semiconductor
EURoHSYes (2011/65/EU, 2015/863)
Automotive No

Informacje dodatkowe

Crosses 9
Inventory 4
PCNs 29
GIDEP-Alerts 3
MaskPart CY8C4125LQI483%
SupplierUrl http://www.cypress.com/?app=search&searchType=part&keywords=CY8C4125LQI-483

Parametry

ADC Channels N/A
ADC Resolution (bit) 12
Analog Comparators 2
Bluetooth No
CAN 0
CAN Type N/A
DAC Channels N/A
DAC Resolution (bit) N/A
DDR No
DMA Channels N/A
Data Bus Width (bit) 32
Data Cache Size N/A
Data Memory Size N/A
Device Core ARM Cortex M0
Direct Memory Access No
Display Driver N/A
EEPROM N/A
Encryption Standard N/A
Ethernet 0
Ethernet Interface Type N/A
Ethernet Speed N/A
External Bus Interface No
Family Name CY8Cxxx
Floating Point Unit No
Hardware Acceleration N/A
I2C 1
I2S 0
ISM Band N/A
Input Capture Channels N/A
Instruction Cache Size N/A
Instruction Set Architecture RISC
Integrated Development Environment Yes
Interface Type I2C/SPI/UART
Internal/External Clock Type Internal/External
LCD Segments N/A
Maximum CPU Frequency (MHz) 24
Maximum Clock Rate (MHz) 24
Maximum Dhrystone MIPS (MIPS) N/A
Maximum Expanded Memory Size N/A
Maximum Operating Supply Voltage (V) 5.5
Maximum Operating Temperature (°C) 85
Maximum Power Dissipation (mW) N/A
Maximum Storage Temperature (°C) N/A
Memory Management Unit No
Memory Protection Unit No
Minimum Operating Supply Voltage (V) 1.71
Minimum Operating Temperature (°C) -40
Minimum Storage Temperature (°C) N/A
Multiply Accumulate No
Number of ADCs Single
Number of DACs Dual
Number of Programmable I/Os 34
Number of Timers 4
Operating Supply Voltage (V) 3|5
Output Compare Channels N/A
PWM 1
Parallel Master Port No
Power On Reset Yes
Program Memory Size 32KB
Program Memory Type Flash
Programmability Yes
RAM Size 4KB
Real Time Clock No
SPI 1
Solutions N/A
Special Features N/A
Super Scalar No
Supplier Temperature Grade Industrial
Temperature Flag Opr
Temperature Sensor Yes
Timers Channels N/A
Timers Resolution (bit) 16/16/16/16
Touch Sensing Interface No
Trace Hardware N/A
Typical Operating Supply Voltage (V) 3|5
UART 1
USART 0
USB 0
Watchdog 1
Wi-Fi No
