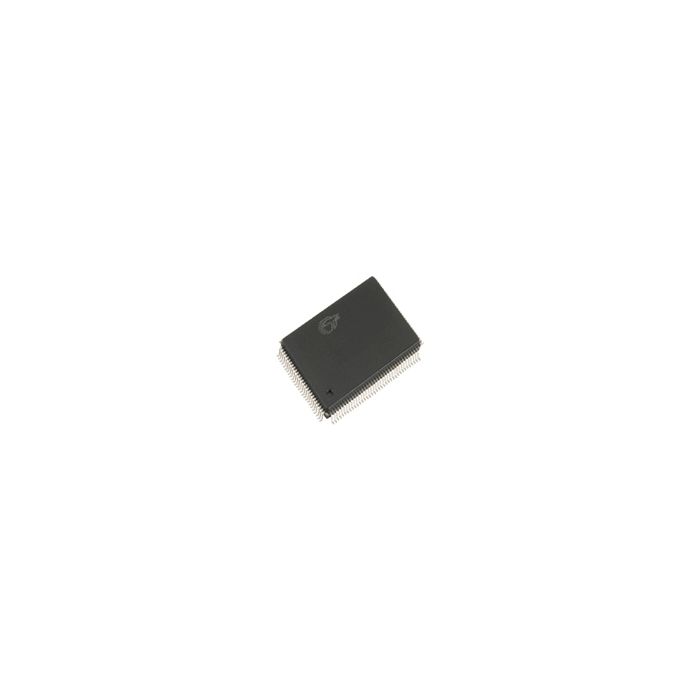

CY7C64713-128AXC

ProducentCypress SemiconductorEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
CY7C64713-128AXC_CYPRESS_SEMICONDUCTOR
0,00 zł

Zapytaj o ten produkt

Opis / CY7C64713-128AXC

Full Speed/High Speed USB Peripheral Controller USB 2.0 3.3V Tray 128-Pin TQFP

Informacje podstawowe

  • ProducentCypress Semiconductor
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 9
  • Inventory 2
  • PCNs 40
  • GIDEP-Alerts 4
  • MaskPart CY7C64713128AXC%
  • IntroductionDate Aug 18, 2005
  • EnablingEnergyEfficiency No
  • SupplierUrl http://www.cypress.com/?app=search&searchType=part&keywords=CY7C64713-128AXC

Parametry

  • Interface Type I2C
  • Maximum Data Rate (Mbps) 480
  • Maximum Operating Frequency (MHz) N/A
  • Maximum Operating Supply Voltage (V) 3.45
  • Maximum Operating Temperature (°C) 70
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 3.15
  • Minimum Operating Temperature (°C) 0
  • Minimum Storage Temperature (°C) -65
  • Protocols Supported USB 2.0
  • Supplier Temperature Grade Commercial
  • Type USB Peripheral Controller
  • Typical Operating Supply Voltage (V) 3.3
  • Typical Supply Current (mA) 35
  • USB Speed Type Full Speed|High Speed
  • USB Transceiver Yes

Więcej informacji

Do pobrania Download
Main description Full Speed/High Speed USB Peripheral Controller USB 2.0 3.3V Tray 128-Pin TQFP
