CY7C374i-125JC

ProducentCypress SemiconductorEURoHSNo (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
CY7C374I-125JC_CYPRESS_SEMICONDUCTOR
0,00 zł

Zapytaj o ten produkt

Opis / CY7C374i-125JC

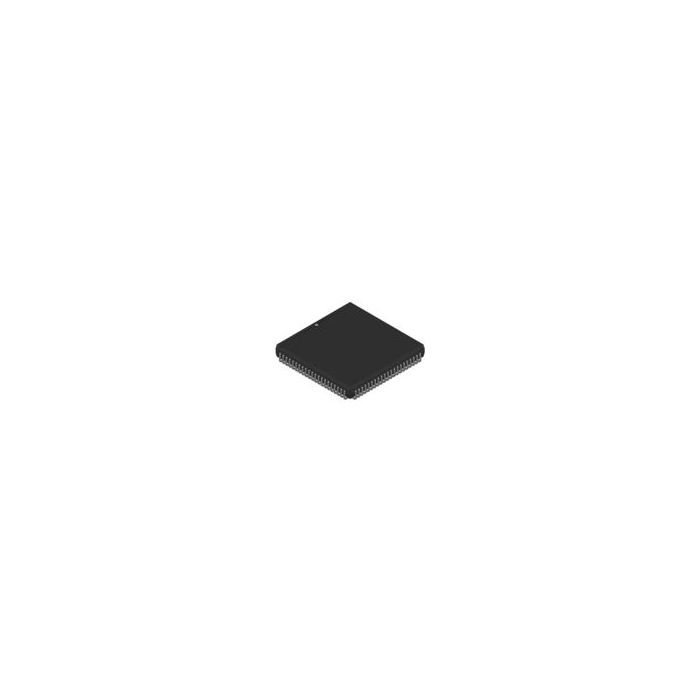

CPLD FLASH370 Family 3.2K Gates 128 Macro Cells 5V 84-Pin PLCC

Informacje podstawowe

  • ProducentCypress Semiconductor
  • EURoHSNo (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 244
  • PCNs 26
  • FoundINBOMs 1
  • MaskPart CY7C374i125JC%
  • IntroductionDate Jul 28, 2000
  • EnablingEnergyEfficiency No
  • SupplierUrl http://www.cypress.com/?app=search&searchType=part&keywords=CY7C374i-125JC

Parametry

  • Clock Management N/A
  • Data Gate No
  • Device Logic Cells N/A
  • Device System Gates 3200
  • Family Name FLASH370
  • I/O Voltage (V) 3.3|5
  • In-System Programmability Yes
  • Individual Output Enable Control No
  • Maximum Clock to Output Delay (ns) 6.5
  • Maximum Internal Frequency (MHz) N/A
  • Maximum Operating Current (mA) 200
  • Maximum Operating Frequency (MHz) N/A
  • Maximum Operating Supply Voltage (V) 5.25
  • Maximum Operating Temperature (°C) 70
  • Maximum Propagation Delay Time (ns) 10
  • Maximum Storage Temperature (°C) 150
  • Memory Size (Kbit) N/A
  • Minimum Operating Supply Voltage (V) 4.75
  • Minimum Operating Temperature (°C) 0
  • Minimum Storage Temperature (°C) -65
  • Number of Flip Flops N/A
  • Number of Global Clocks 4
  • Number of I/O Banks N/A
  • Number of Inter Dielectric Layers N/A
  • Number of Logic Blocks/Elements 8
  • Number of Macro Cells 128
  • Number of Product Terms per Macro 16
  • Number of User I/Os 64
  • Process Technology N/A
  • Program Memory Type Flash
  • Programmability Yes
  • RAM Bits (Kbit) N/A
  • Reprogrammability Support Yes
  • Speed Grade 125
  • Supplier Temperature Grade Commercial
  • Temperature Flag Opr
  • Tolerant Configuration Interface Voltage (V) N/A
  • Tradename FLASH370
  • Typical Operating Supply Voltage (V) 5

Więcej informacji

Do pobrania Download
Main description CPLD FLASH370 Family 3.2K Gates 128 Macro Cells 5V 84-Pin PLCC
