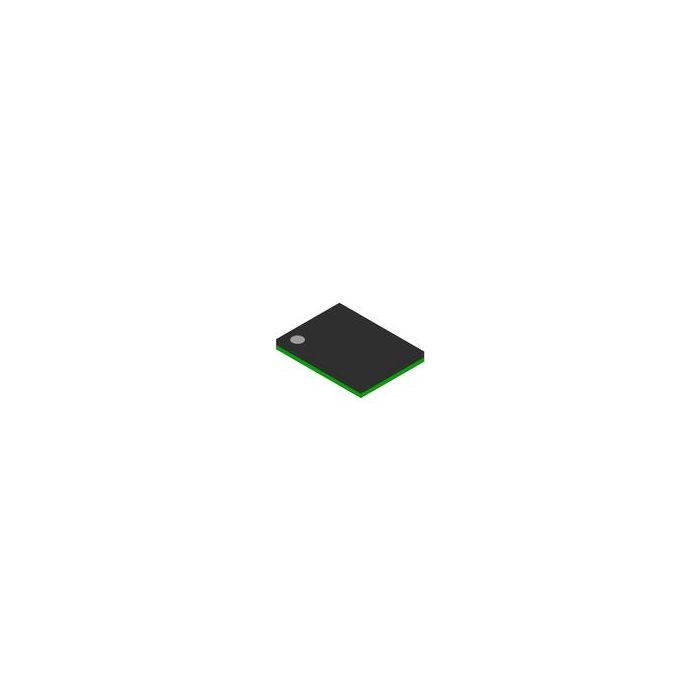

CY62157EV30LL-45BVXIT

ProducentCypress SemiconductorEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
CY62157EV30LL-45BVXIT_CYPRESS_SEMICONDUCTOR
0,00 zł

Zapytaj o ten produkt

Opis / CY62157EV30LL-45BVXIT

SRAM Chip Async Single 3V 8M-bit 512K x 16 45ns 48-Pin VFBGA T/R

Informacje podstawowe

  • ProducentCypress Semiconductor
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 202
  • Inventory 7
  • PCNs 44
  • GIDEP-Alerts 10
  • MaskPart CY62157EV30LL45BVXI%
  • IntroductionDate Oct 10, 2001
  • EnablingEnergyEfficiency No
  • SupplierUrl http://www.cypress.com/?app=search&searchType=part&keywords=CY62157EV30LL-45BVXIT

Parametry

  • Address Bus Width (bit) 19
  • Architecture N/R
  • Burst Length (Words) N/R
  • Data Rate Architecture N/R
  • Density (bit) 8M
  • Density in Bits (bit) 8388608
  • Function N/A
  • Maximum Access Time (ns) 45
  • Maximum Clock Rate (MHz) N/R
  • Maximum Operating Current (mA) 25
  • Maximum Operating Supply Voltage (V) 3.6
  • Maximum Operating Temperature (°C) 85
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 2.2
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Bits per Word (bit) 16
  • Number of I/O Lines (bit) 16
  • Number of Ports 1
  • Number of Words 512K
  • Process Technology CMOS
  • Read Latency (Cycles) N/R
  • Supplier Temperature Grade Industrial
  • Timing Type Asynchronous
  • Typical Operating Supply Voltage (V) 3

Więcej informacji

Do pobrania Download
Main description SRAM Chip Async Single 3V 8M-bit 512K x 16 45ns 48-Pin VFBGA T/R
