CD74HC4067M96E4

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
CD74HC4067M96E4_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / CD74HC4067M96E4

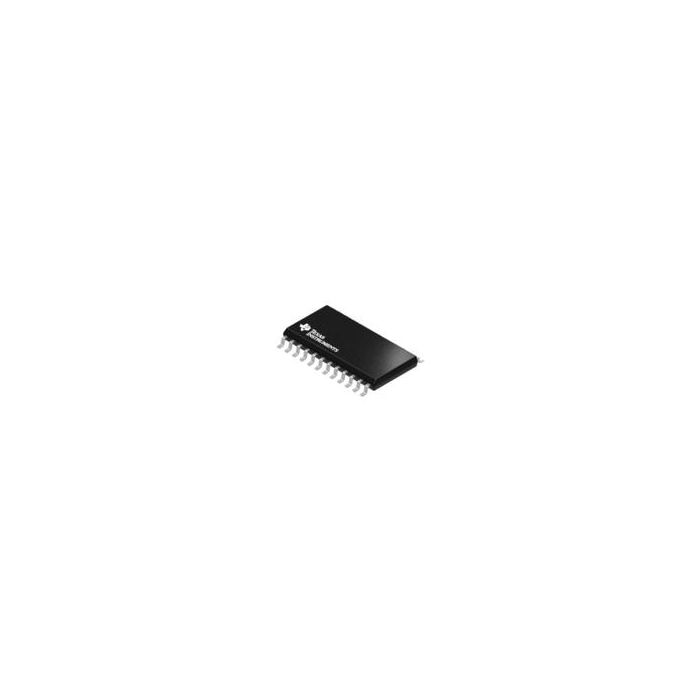

Analog Multiplexer Single 16:1 24-Pin SOIC T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 29
  • Inventory 1
  • PCNs 40
  • MaskPart CD74HC4067M%E4
  • IntroductionDate Aug 01, 2003

Parametry

  • Chip Enable Signals Yes
  • Configuration Single 16:1
  • Function General
  • Input Signal Type Single
  • Logic Family HC
  • Maximum Data Rate (Mbps) N/A
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Frequency (25°C) @ Vcc (MHz) 89@4.5V
  • Maximum High Level Output Current (mA) 25
  • Maximum Low Level Output Current (mA) 25
  • Maximum On Resistance (Ohm) 180@4.5V
  • Maximum On Resistance Range (Ohm) 150 to 250
  • Maximum Operating Temperature (°C) 125
  • Maximum Power Dissipation (mW) N/A
  • Maximum Propagation Delay Bus to Bus (ns) 13@6V|15@4.5V|75@2V
  • Maximum Single Supply Voltage (V) 6
  • Maximum Supply Current (mA) N/A
  • Maximum Turn-Off Time (ns) 290@2V
  • Maximum Turn-On Time (ns) 300@2V
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -55
  • Minimum Single Supply Voltage (V) 2
  • Multiplexer Architecture 16:1
  • Number of Channels per Chip 1
  • Number of Inputs per Chip 16
  • Number of Outputs per Chip 1
  • Output Signal Type Single
  • Polarity N/A
  • Power Supply Type Single
  • Propagation Delay Test Condition (pF) 50
  • Special Features Break-Before-Make
  • Supplier Temperature Grade N/A
  • Switch Architecture N/R
  • Switch Control Logic N/R
  • Switch Normal Position N/R
  • Type Analog Multiplexer
  • Typical Dual Supply Voltage (V) N/R
  • Typical Single Supply Voltage (V) 3|5
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description Analog Multiplexer Single 16:1 24-Pin SOIC T/R
