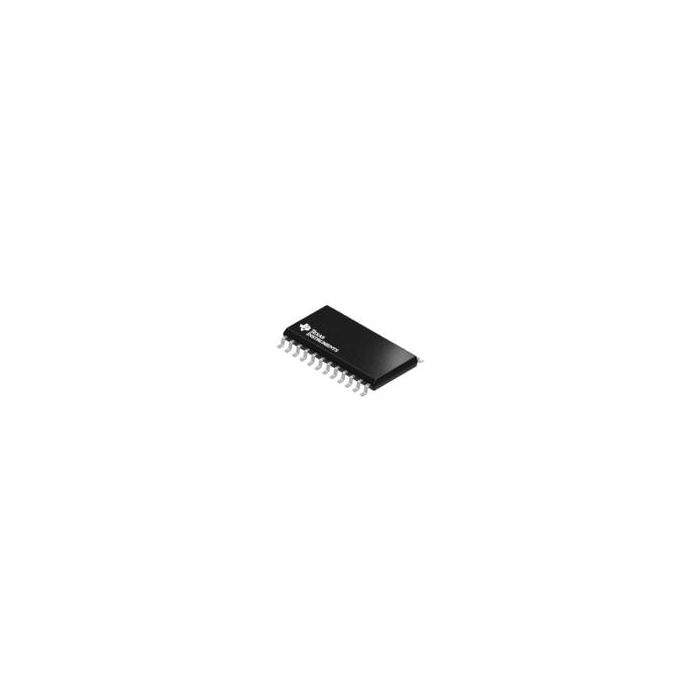

CD74HC154ME4

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
CD74HC154ME4_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / CD74HC154ME4

Decoder/Demultiplexer Single 4-to-16 24-Pin SOIC Tube

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 24
  • Inventory 5*
  • PCNs 41
  • MaskPart CD74HC154M%E4
  • IntroductionDate Aug 01, 2003

Parametry

  • Absolute Propagation Delay Time (ns) 265
  • Demultiplexing Capability 1-of-16
  • Logic Family HC
  • Logic Function Decoder/Demultiplexer
  • Maximum High Level Output Current (mA) -5.2
  • Maximum Low Level Output Current (mA) 5.2
  • Maximum Operating Supply Voltage (V) 6
  • Maximum Operating Temperature (°C) 125
  • Maximum Propagation Delay Time @ Maximum CL (ns) 175@2V|35@4.5V|30@6V
  • Maximum Quiescent Current (mA) 0.008
  • Minimum Operating Supply Voltage (V) 2
  • Minimum Operating Temperature (°C) -55
  • Number of Element Inputs 4
  • Number of Element Outputs 16
  • Number of Elements per Chip 1
  • Number of Input Enables per Element 2
  • Number of Output Enables per Element 0
  • Output Type N/A
  • Polarity Inverting
  • Process Technology CMOS
  • Propagation Delay Test Condition (pF) 50
  • Supplier Temperature Grade Military
  • Tolerant I/Os (V) N/A
  • Typical Operating Supply Voltage (V) 2.5|3.3|5

Więcej informacji

Do pobrania Download
Main description Decoder/Demultiplexer Single 4-to-16 24-Pin SOIC Tube
