CD4093BEE4

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
CD4093BEE4_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / CD4093BEE4

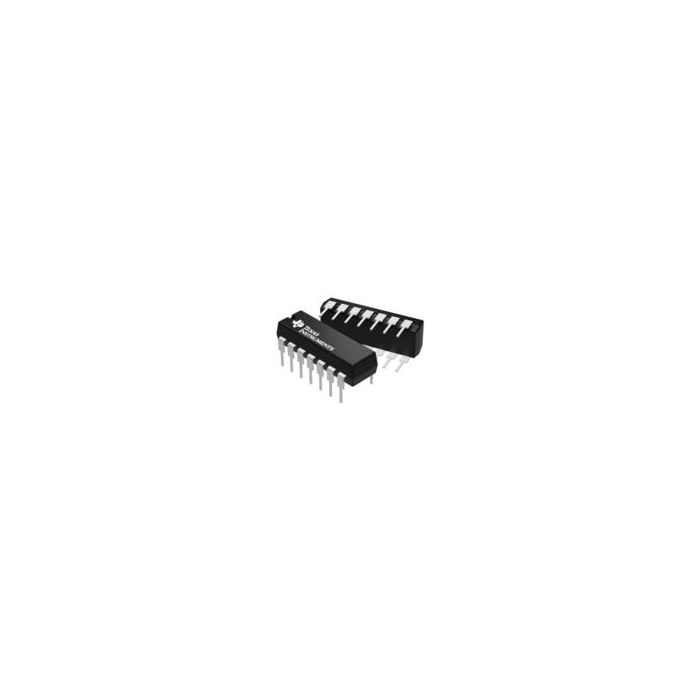

NAND Gate 4-Element 2-IN CMOS 14-Pin PDIP Tube

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 40
  • Inventory 2
  • PCNs 42
  • MaskPart CD4093BEE4%
  • IntroductionDate Jan 01, 2002

Parametry

  • Absolute Propagation Delay Time (ns) 380
  • Input Type Schmitt Trigger
  • Logic Family CD4000
  • Logic Function NAND
  • Maximum High Level Output Current (mA) -4.2(Min)
  • Maximum Low Level Output Current (mA) 4.2(Min)
  • Maximum Operating Supply Voltage (V) 18
  • Maximum Operating Temperature (°C) 125
  • Maximum Propagation Delay Time @ Maximum CL (ns) 380@5V|180@10V|130@15V
  • Maximum Quiescent Current (uA) 20
  • Maximum Supply Current (mA) N/A
  • Minimum Operating Supply Voltage (V) 3
  • Minimum Operating Temperature (°C) -55
  • Number of Element Inputs 2-IN
  • Number of Element Outputs 1
  • Number of Elements per Chip 4
  • Number of Output Enables per Element 0
  • Number of Selection Inputs per Element 0
  • Output Type Push-Pull
  • Process Technology CMOS
  • Propagation Delay Test Condition (pF) 50
  • Supplier Temperature Grade N/A
  • Typical Operating Supply Voltage (V) 3.3|5|9|12|15
  • Typical Quiescent Current (uA) 0.04
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description NAND Gate 4-Element 2-IN CMOS 14-Pin PDIP Tube
