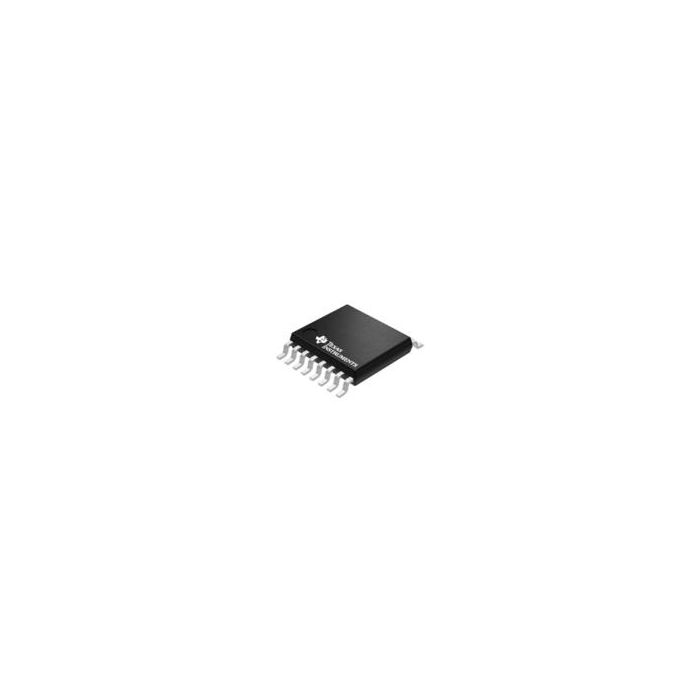

CD4053BPWRG4
| Do pobrania | Download |
|---|---|
| Main description | Analog Multiplexer Triple 2:1 16-Pin TSSOP T/R |
Analog Multiplexer Triple 2:1 16-Pin TSSOP T/R
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 92
- Inventory 3
- PCNs 44
- MaskPart CD4053BPW%G4
- IntroductionDate Aug 01, 2003
Parametry
- Chip Enable Signals Yes
- Configuration Triple 2:1
- Function General
- Input Signal Type Single
- Logic Family CD4000
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) ±9
- Maximum Frequency (25°C) @ Vcc (MHz) 60(Typ)@10V|30(Typ)@10V
- Maximum High Level Output Current (mA) N/A
- Maximum Low Level Output Current (mA) N/A
- Maximum On Resistance (Ohm) 1050@5V
- Maximum On Resistance Range (Ohm) >=1000
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Bus to Bus (ns) 20@15V|30@10V|60@5V
- Maximum Single Supply Voltage (V) 20
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) N/A
- Maximum Turn-Off Time (ns) 450@5V
- Maximum Turn-On Time (ns) 720@5V
- Minimum Dual Supply Voltage (V) ±2.5
- Minimum Single Supply Voltage (V) 3
- Minimum Storage Temperature (°C) -65
- Multiplexer Architecture 2:1
- Number of Channels per Chip 3
- Number of Inputs per Chip 6
- Number of Outputs per Chip 3
- Output Signal Type Single
- Polarity N/A
- Power Supply Type Single|Dual
- Propagation Delay Test Condition (pF) 50
- Special Features Break-Before-Make
- Supplier Temperature Grade Military
- Switch Architecture N/R
- Switch Control Logic N/R
- Switch Normal Position N/R
- Type Analog Multiplexer
- Typical Dual Supply Voltage (V) ±3|±5
- Typical Single Supply Voltage (V) 5|9|12|15|18
- Typical Supply Current (mA) N/A
